203 589 01 43 00 Removal and installation tool - WS35.00-P-0181B

FG 35/Set B

MODEL 171, 203, 209

Use:

Removal and installation tool for rubber mount on track rod

VEHICLE

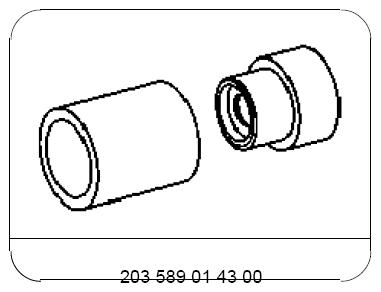

Fig 1: Identifying Removal And Installation Tool (203 589 01 43 00)
G07643258Courtesy of MERCEDES-BENZ USA
