Active Body Control (ABC), location of components - GF32.50-P-0001-01SX

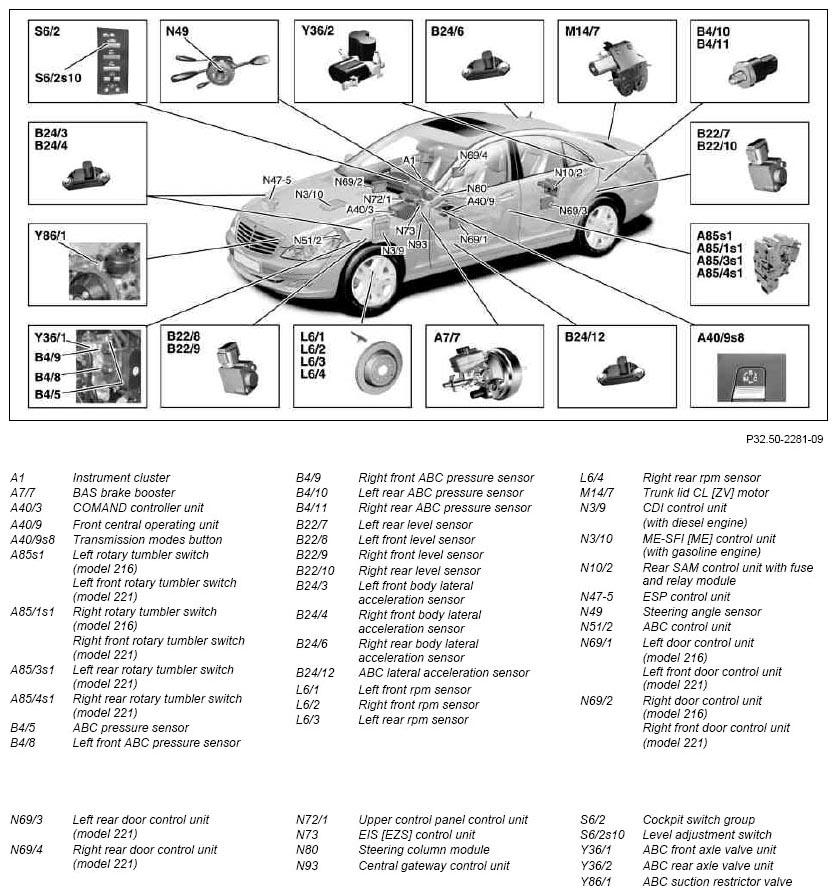

Fig 1: Identifying Active Body Control (ABC) Components Location (Shown On Model 221)
G07637930Courtesy of MERCEDES-BENZ USA

Shown on model 221
