AIRMATIC, location of components - GF32.22-P-0003-05LE

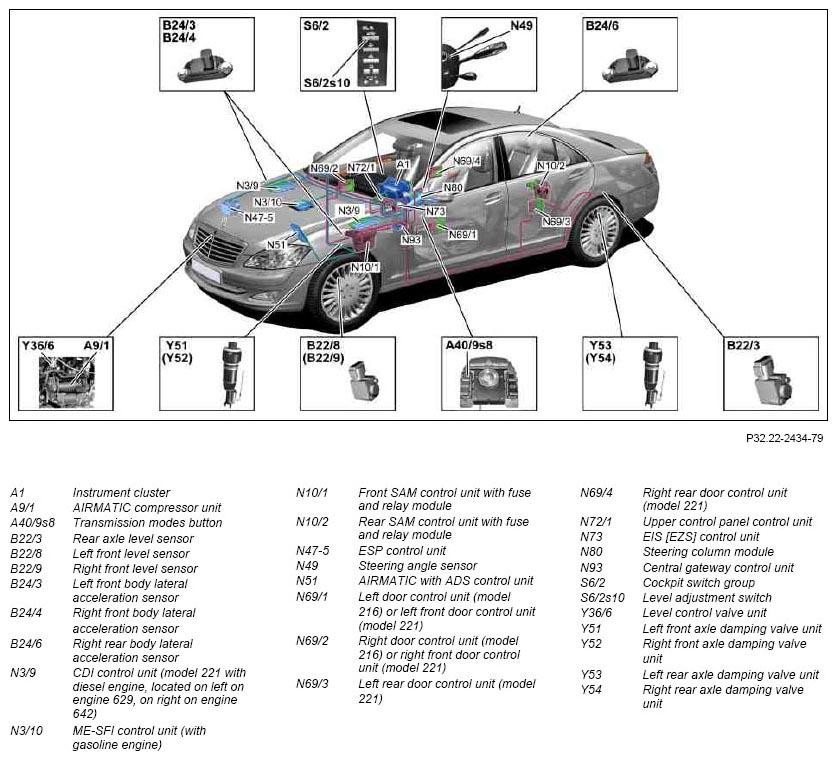

Fig 1: Identifying Airmatic Components Location (Shown On Model 221.0)

G07637914

Courtesy of MERCEDES-BENZ USA

Shown on model 221.0
