AIRMATIC, block diagram - GF32.22-P-0003-06LE

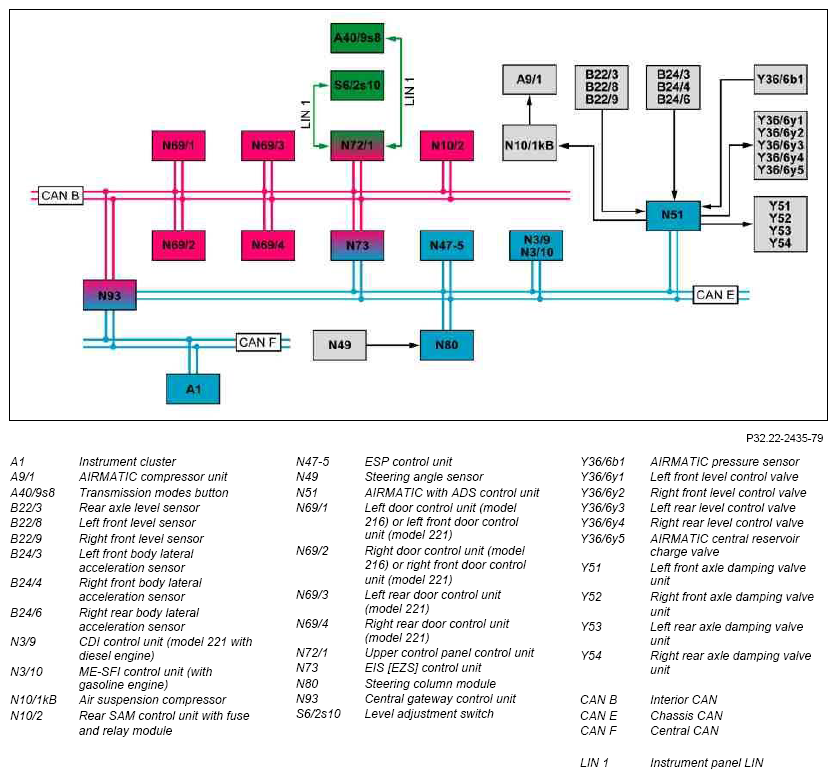

Fig 1: Airmatic Block Diagram

G07637916

Courtesy of MERCEDES-BENZ USA
