ABC lateral acceleration pickup, component description - GF32.50-P-4621SX

MODEL 216.3 up to Model Year 8

MODEL 221.0 /1 with CODE (487) Active Body Control (ABC) up to Model Year 8

Illustrated on model 221

Location

The ABC lateral acceleration sensor is located in the driver footwell.

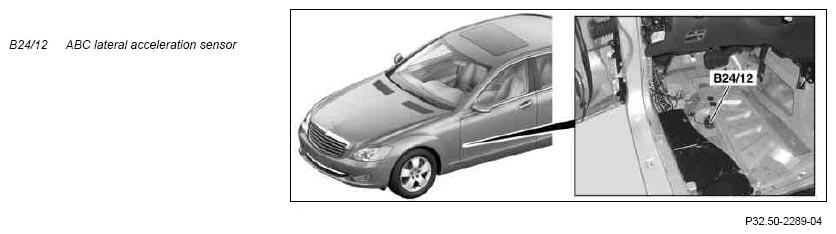

Fig 1: Identifying ABC Lateral Acceleration Sensor (Illustrated On Model 221)

Courtesy of MERCEDES-BENZ USA

Task

Using the ABC lateral acceleration sensor, the ABC control unit (N51/2) determines the lateral dynamics and lateral acceleration which is acting on the vehicle.
