246 589 01 33 00 Extraction tool - WS33.00-P-0007B

FG 33/Set B

MODEL 246

Use:

For pulling out FA shafts

NOTE: In combination with impact extractor 602 589 00 33 00.

VEHICLE

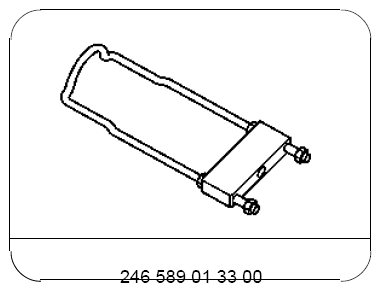

Fig 1: Identifying Extraction Tool (246 589 01 33 00)
G07765361Courtesy of MERCEDES-BENZ USA
