| A0 |
Explanation of color codes |
40L |
| A45 |
Fanfare horns and airbag clock spring contact |
18D |

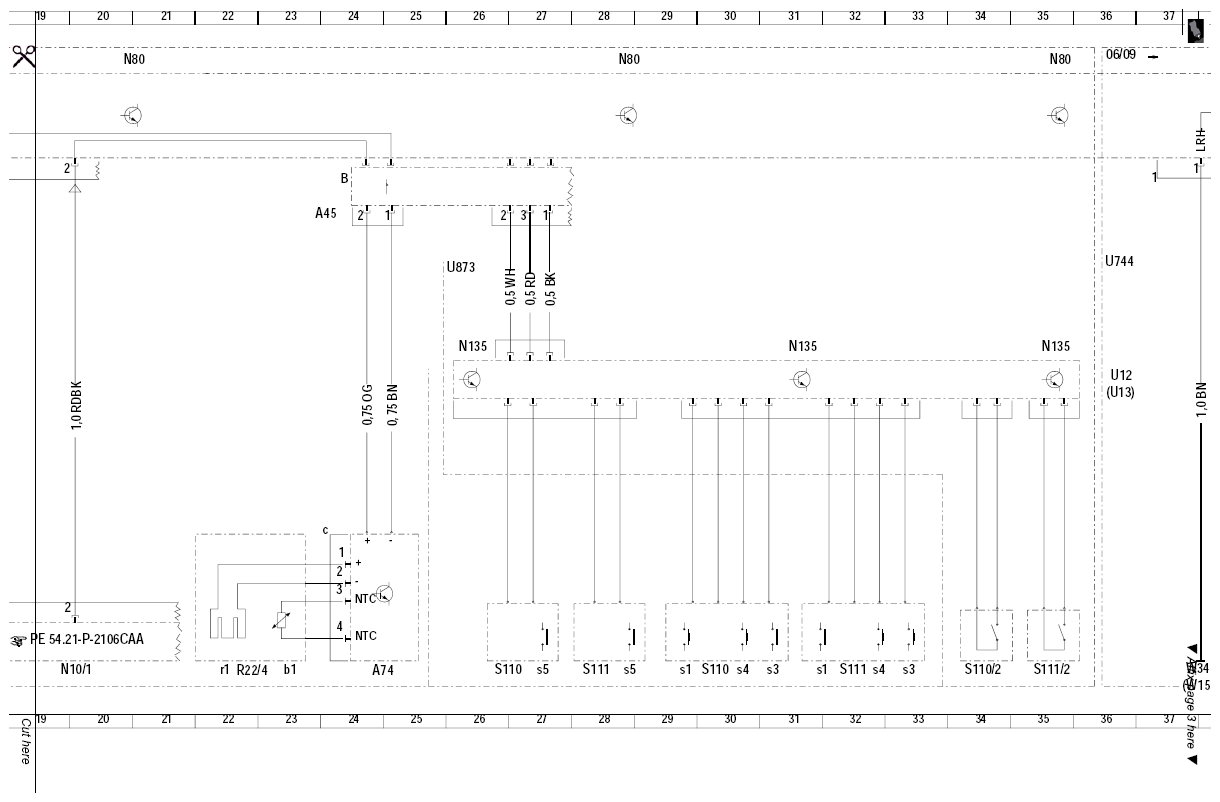

| A74 |
Steering wheel heater electronics |
19L |

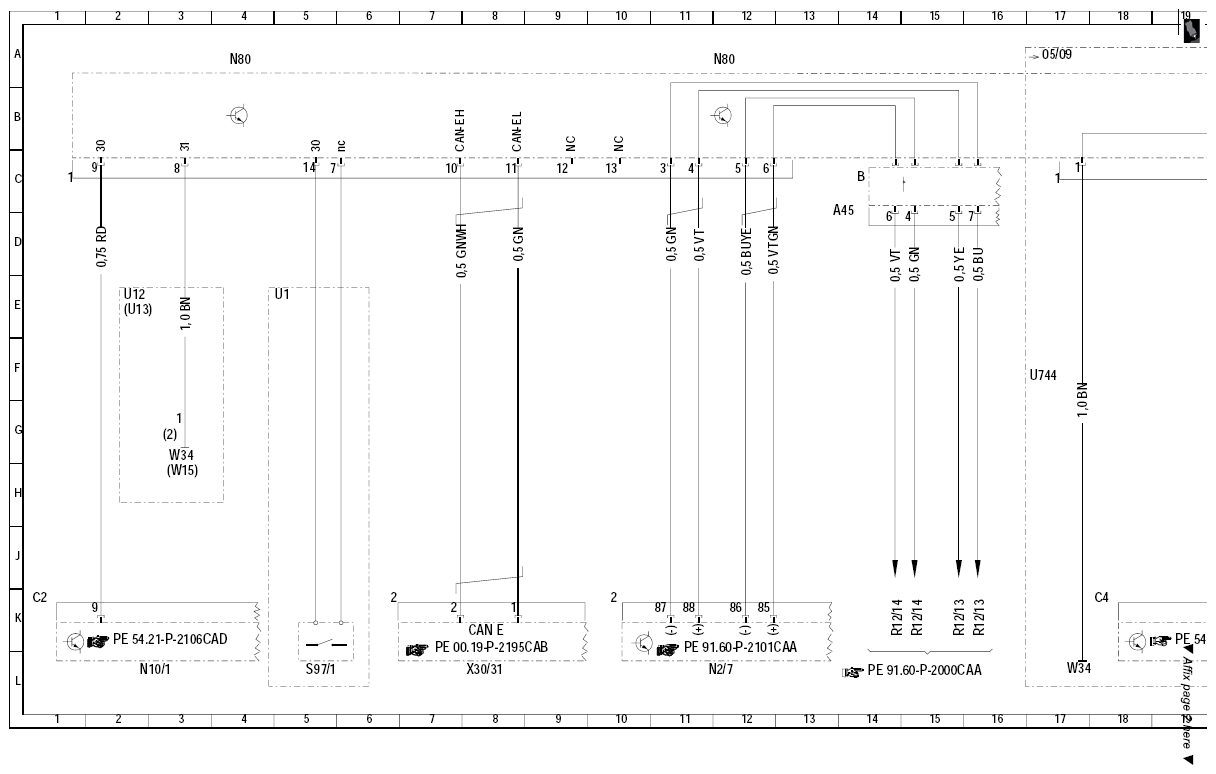

| N10/1 |
Front SAM control module with fuse and relay module |
2L |
| N10/1 |
Front SAM control module with fuse and relay module |
14L |
| N135 |
Steering wheel gear shift signal processing module |
22G |
| N2/7 |
Restraint systems control module |
9L |
| N49 |
Steering angle sensor |
31D |

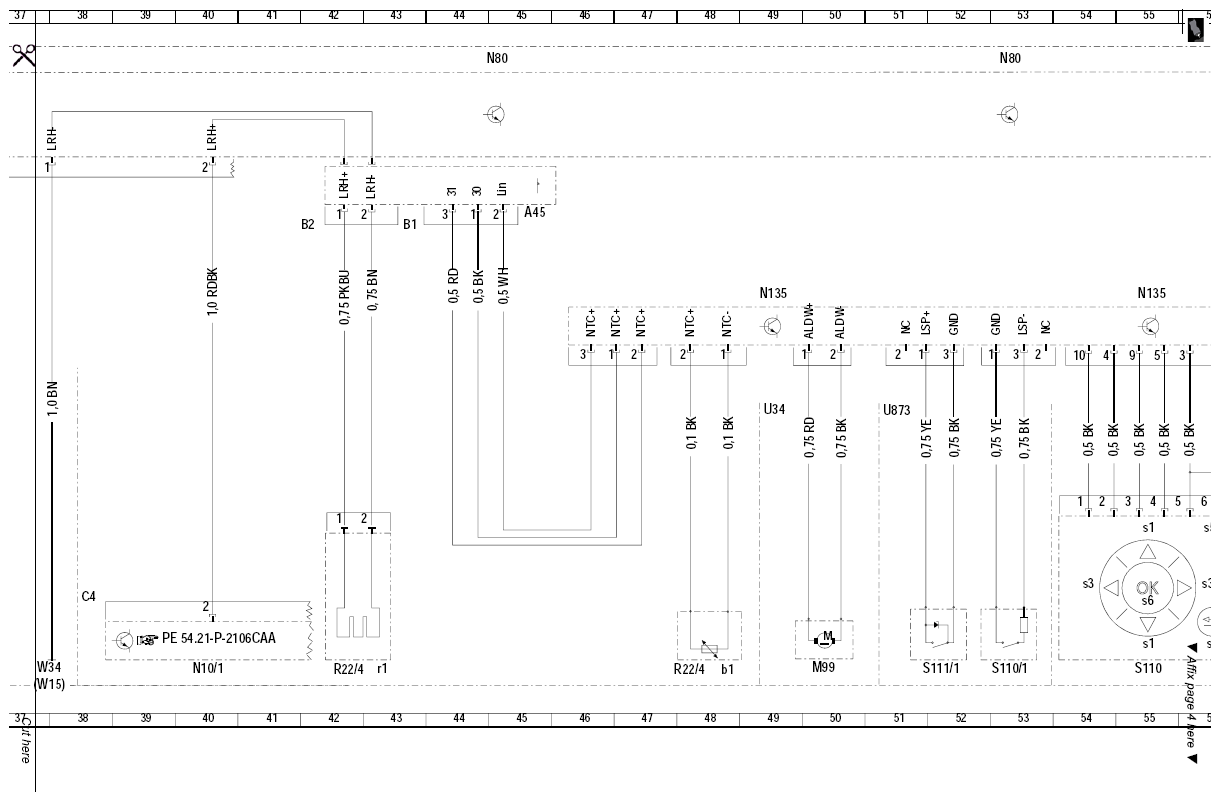

| N80 |
Steering column module |
4A |
| N80 |
Steering column module |
12A |
| N80 |
Steering column module |
20A |
| N80 |
Steering column module |
28A |
| N80 |
Steering column module |
37A |
| R12/13 |
Driver airbag ignition squib 1 |
21L |
| R12/14 |
Driver airbag ignition squib 2 |
20L |
| R22/4 |
Steering wheel heater |
17L |
| R22/4b1 |
Heater coil temperature sensor |
18L |
| R22/4r1 |
Heater coil |
17L |
| S110 |
Left multifunction steering wheel push-button group |
23L |
| S110 |
Left multifunction steering wheel push-button group |
26L |
| S110/2 |
Left steering wheel gear shifter |
31L |
| S110s1 |
Scroll forward/back push-button |
26L |
| S110s3 |
System selection push-button |
27L |
| S110s4 |
"Back" and SBS off button |
27L |
| S110s5 |
Fanfare horns push-button |
24L |

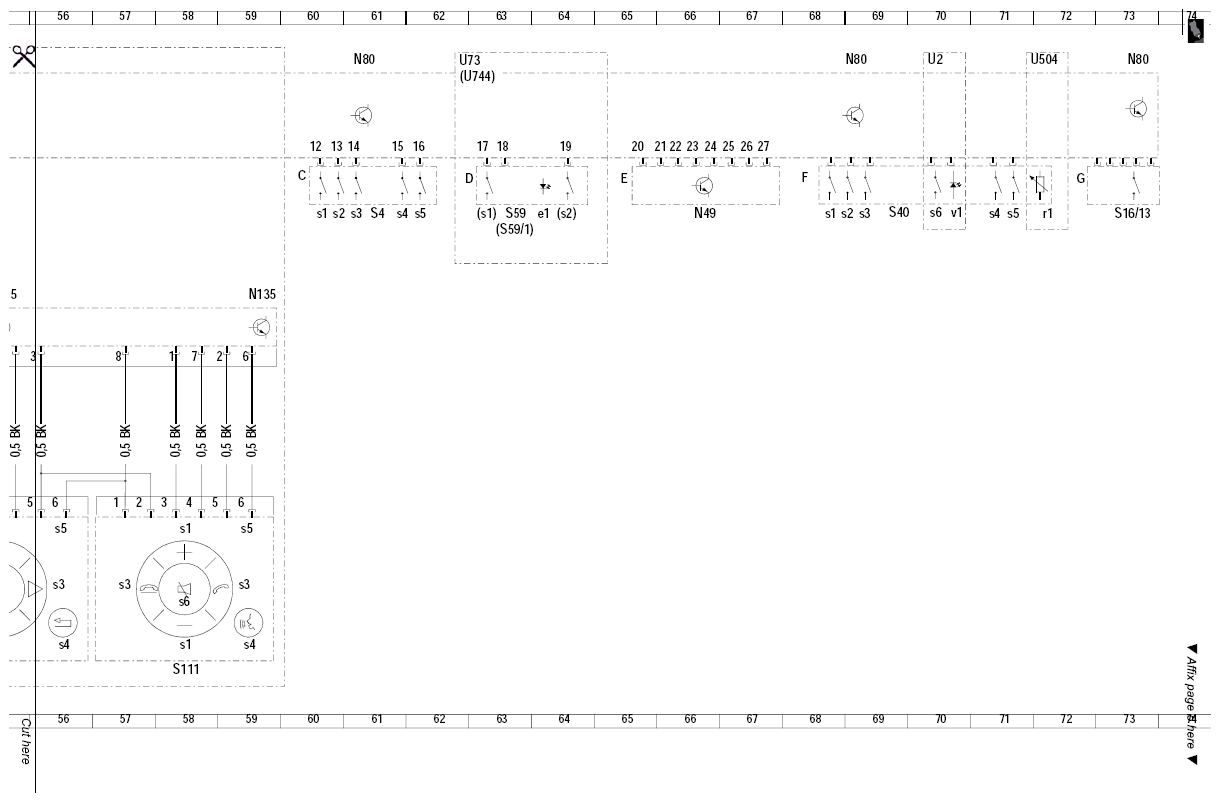

| S111 |
Right multifunction steering wheel push-button group |
24L |
| S111 |
Right multifunction steering wheel push-button group |
29L |
| S111/2 |
Right steering wheel gear shifter |
32L |
| S111s1 |
Pushbutton + and -, setting of specific functions and volume control |
28L |
| S111s3 |
Accept/terminate phone call push-button |
29L |
| S111s4 |
VCS [SBS] on button |
29L |
| S111s5 |
Fanfare horns push-button |
25L |
| S16/13 |
Gear selector switch DIRECT SELECT |
37D |
| S4 |
Combination switch |
26D |
| S40/4 |
CC switch |
33D |
| S40/4r1 |
DTR distance potentiometer |
36D |
| S40/4s1 |
Resume from memory |
32D |
| S40/4s2 |
Decelerate and set |
32D |
| S40/4s3 |
Accelerate and set |
33D |
| S40/4s4 |
Off |
34D |
| S40/4s5 |
Control contact |
34D |
| S40/4s6 |
Variable speed |
34D |
| S40/4v1 |
Yellow LED, variable speed limiter |
35D |
| S4s1 |
Left and right turn signal switch |
25D |
| S4s2 |
Headlamp flasher/high beam switch |
25D |
| S4s3 |
Low beam switch |
25D |
| S4s4 |
Windshield washer system switch |
26D |
| S4s5 |
Wipe switch |
26D |
| S59 |
Steering column adjustment switch |
28D |
| S59/1 |
Steering column adjustment/steering wheel heater switch |
28D |
| S59/1e1 |
Steering wheel heater function indicator lamp |
28D |
| S59/1 s1 |
Steering column adjustment raise/lower, forward/back switch |
27D |
| S59/1 s2 |
Steering wheel heater switch |
28D |
| U12 |
Valid for left-hand steering |
2D |
| U13 |
Valid for right-hand steering |
2D |
| U2 |
Valid for all except {USA} |
35A |
| U504 |
Valid for DTR |
36A |
| U73 |
Valid for ESC [ELV] |
27A |
| U744 |
Valid for steering wheel heater |
12F |
| U744 |
Valid for steering wheel heater |
27B |
| U873 |
Valid for steering wheel gear shift |
22E |
| W15 |
Ground (electronics power ground) |
3H |
| W34 |
Ground (left footwell) |
3H |
| W34 |
Ground (left footwell) |
12L |
| X30/31 |
Chassis CAN/cockpit voltage distributor connector |
6L |
