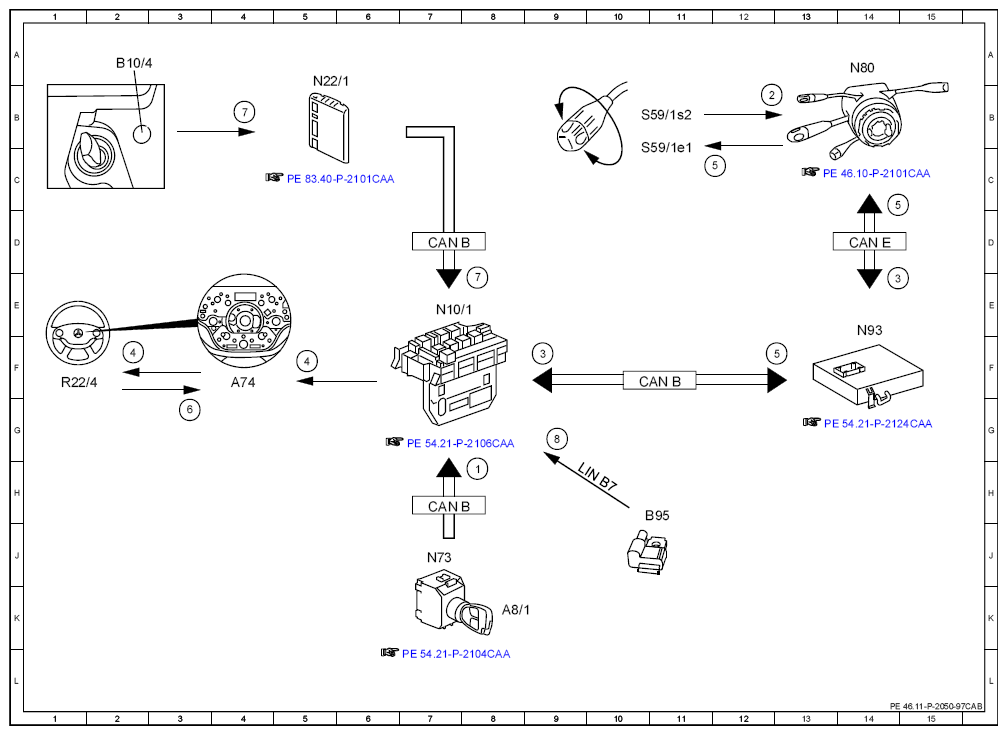

| 1 |
Circuit 15, status |
8H |
| 2 |
Steering wheel heater switch, status |
12B |
| 3 |
Steering wheel heater, request |
15E |
| 3 |
Steering wheel heater, request |
9F |
| 4 |
Steering wheel heater, actuation |
3F |
| 4 |
Steering wheel heater, actuation |
5F |
| 5 |
Steering wheel heater, status |
12C |
| 5 |
Steering wheel heater, status |
14C |
| 5 |
Steering wheel heater, status |
13F |
| 6 |
Heater coil temperature sensor, signal |
3G |
| 7 |
In-car temperature sensor, signal |
8E |
| 7 |
In-car temperature sensor, signal |
4B |
| 8 |
On-board electrical system, status |
9G |
| A74 |
Steering wheel heater electronics |
4E |
| A8/1 |
Transmitter key |
7K |
| B10/4 |
In-car temperature sensor |
2B |
| B95 |
Battery sensor |
10J |
| CAN B |
Interior CAN |
11F |
| CAN B |
Interior CAN |
7D |
| CAN B |
Interior CAN |
7H |
| CAN E |
Chassis CAN |
14D |
| LIN B7 |
On-board electrical system LIN |
9H |
| N10/1 |
Front SAM control unit with fuse and relay module |
8F |
| N22/1 |
AAC [KLA] control unit |
5B |
| N73 |
EIS [EZS] control unit |
7K |
| N80 |
Steering column module |
14B |
| N93 |
Central gateway control unit |
14F |
| R22/4 |
Steering wheel heater |
2F |
| S59/1e1 |
Steering wheel heater function indicator lamp |
12C |
| S59/1 s2 |
Steering wheel heater switch |
11B |
