Remove/install power steering pump - AR46.30-P-0500SY

MODEL 221 (except 221.176 /179) with CODE (487) Active Body Control (ABC) except CODE (Z07) Top protection without electrohydraulic power steering (EHPS)

MODEL 216.371 /377 without electrohydraulic power steering (EHPS)

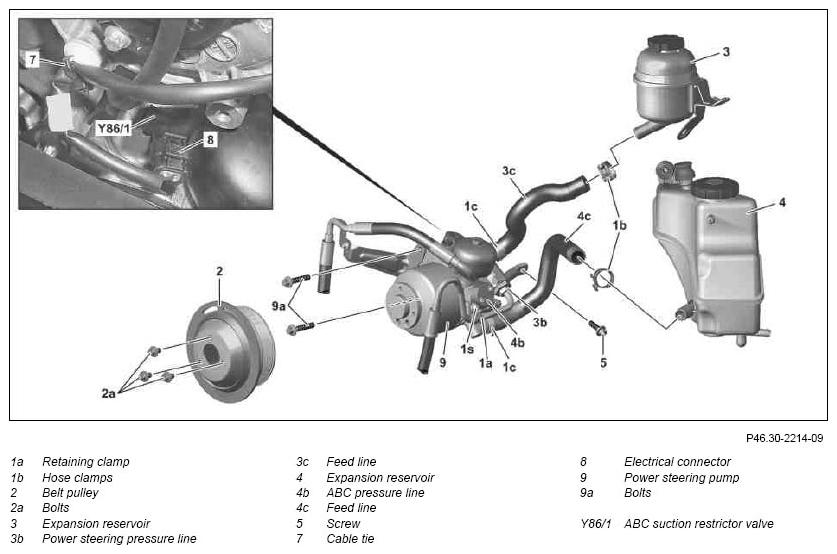

Fig 1: Identifying Power Steering Pump Remove/Install Components (1 Of 2)
G07641647Courtesy of MERCEDES-BENZ USA

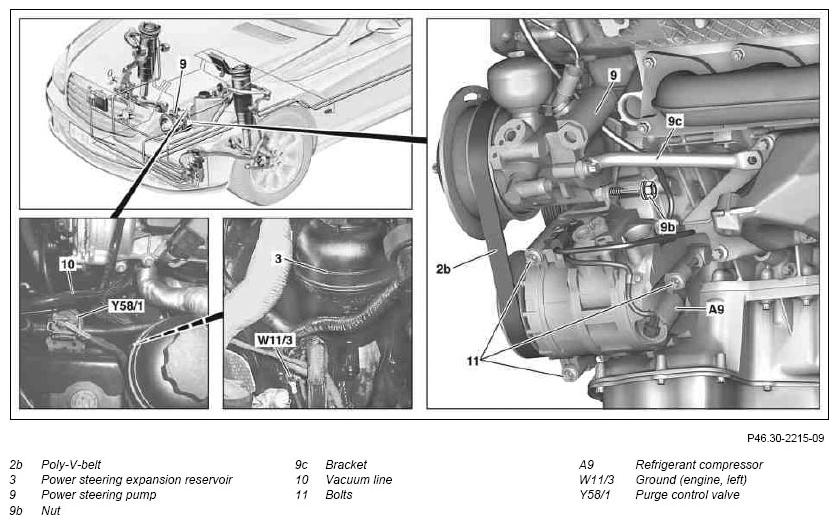

Fig 2: Identifying Power Steering Pump Remove/Install Components (2 Of 2)
G07641648Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
IMPORTANT Notes on Active Body Control suspension   AH32.50-P-0001-01N
1 Remove air filter housing Engine 272, 273 AR09.10-P-1150SX
2 Separate vacuum line (10) of switchover valve (Y58/1)
SPECIAL TOOL Counterholder Fig 4
3 Loosen bolts (2a) of belt pulley (2) TORQUE SPECIFICATION Model 216.371, except 216.377 *BA46.30-P-1008-01Q
TORQUE SPECIFICATION Model 216.377, 221.077 /177 *BA46.30-P-1009-01O
4 Remove poly-V belt (2b) Engine 272, 273 AR13.20-P-0001SX
5 Detach belt pulley (2).
6 Separate cable tie (7)
7 Disconnect electrical connector (8) at ABC suction restrictor valve (Y86/1)
8 Disconnect feed line (3c, 4c) SPECIAL TOOL Clamp Fig 3
9 Open clamps (1b) and detach feed lines (3c, 4c) from expansion reservoir (3, 4) SPECIAL TOOL Hose clamp pliers Fig 5
10 Remove ground (engine, left) (W11/3)
11 Detach retaining clamp (1a)
12 Detach pressure line of power steering (3b) TORQUE SPECIFICATION Model 216, except 216.377 *BA46.30-P-1009-01Q
TORQUE SPECIFICATION Model 216.377, 221.077 /177 *BA46.30-P-1007-01O
13 Remove bottom engine compartment paneling   AR61.20-P-1105SX
14 Remove bolts (11) and place refrigerant compressor (A9) to one side with lines connected NOTES Ensure that no cables or lines, brackets are damaged
Engine 272, 273
TORQUE SPECIFICATION Bolt, refrigerant compressor to timing case/ crankcase/ engine support *BA83.55-P-1001-01M
TORQUE SPECIFICATION Bolt, refrigerant line to refrigerant compressor
Engine 156		 *BA83.55-P-1003-01M
TORQUE SPECIFICATION Bolt, refrigerant compressor to timing case/ crankcase/and/or engine support *BA83.55-P-1001-01T
TORQUE SPECIFICATION Bolt, refrigerant lines to refrigerant compressor *BA83.55-P-1003-01T
15 Remove screw (5) TORQUE SPECIFICATION Model 216 except 216.377 *BA46.30-P-1002-01Q
TORQUE SPECIFICATION Model 216.377, 221.077 /177 *BA46.30-P-1004-01O
16 Unscrew nut (9b). TORQUE SPECIFICATION Model 216 *BA46.30-P-1001-01Q
TORQUE SPECIFICATION 216.377, 221.077 /177 *BA46.30-P-1002-01O
17 Remove bolts (9a) TORQUE SPECIFICATION Model 216 except 216.377 *BA46.30-P-1004-01Q
TORQUE SPECIFICATION Model 216.377, 221.077 /177 *BA46.30-P-1001-01O
18 Pull power steering pump (9) forwards slightly and detach ABC pressure line ABC (4b)
NOTES Replace self-tapping bolts if necessary, observing the following:
  • Never re-tap the thread.
  • Use original bolts only.
  • When screwing in do not attach bolts at an angle
  • Do not use an impact wrench.

IMPORTANT Detach bracket (9c) from power steering pump (9) if necessary.
TORQUE SPECIFICATION Model 216 except 216.377 *BA46.30-P-1003-01Q
19 Remove power steering pump (9) with bracket (9c) upwards TORQUE SPECIFICATION Model 216.377, 221.077 /177 *BA46.30-P-1005-01O
20 Install in the reverse order
21 Fill and bleed active body control (ABC)   AR32.50-P-0021SX
POWER STEERING PUMP

Number Designation Model 216 with engine 273 with code 487
BA46.30-P-1001-01Q Tandem pump to crankcase   Nm 20
BA46.30-P-1002-01Q Bolt, bracket/support of tandem pump to engine support   Nm 35
BA46.30-P-1003-01Q Bolt, plate/bracket to tandem pump   Nm 35
BA46.30-P-1004-01Q Tandem pump to timing case self-tapping M8x44 Nm 35
M8x30 Nm 20
BA46.30-P-1008-01Q Belt pulley to tandem pump   Nm 30
BA46.30-P-1009-01Q Union nut, high-pressure expansion hose of rack-and-pinion steering to tandem pump   Nm 40
POWER STEERING PUMP

Number Designation Engine 156 in model 216, 221
BA46.30-P-1001-01O Bolt, power steering pump bracket to timing case cover M8x30 Nm 30
M8x35 Nm 30
BA46.30-P-1002-01O Bolt, power steering pump bracket to crankcase M8x90 Nm 30
BA46.30-P-1004-01O Bolt, support holder to cylinder crankcase M8x35 Nm 30
BA46.30-P-1005-01O Bolt, support holder to power steering pump M8x35 Nm 30
BA46.30-P-1007-01O High-pressure expansion hose to power steering pump   Nm 40
BA46.30-P-1009-01O Bolt, belt pulley to tandem pump   Nm 30
REFRIGERANT COMPRESSOR

Number Designation Engine 272 Engine 273
BA83.55-P-1001-01M Bolt, refrigerant compressor to timing case/ crankcase/engine support Nm 20 20
BA83.55-P-1003-01M Bolt, refrigerant line to refrigerant compressor Nm 20 20
REFRIGERANT COMPRESSOR

Number Designation Engine 156 in model 204, 209, 211, 212, 216, 219, 221, 230
BA83.55-P-1001-01T Bolt, refrigerant compressor to timing case/ crankcase/and/or engine support Nm 20
BA83.55-P-1003-01T Bolt, refrigerant lines to refrigerant compressor Nm 20
Fig 3: Identifying Clamping Device (000 589 54 37 00)
G07641649Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Counterholder (603 589 00 40 00)
G07641650Courtesy of MERCEDES-BENZ USA
Fig 5: Identifying Hose Clamp Pliers (003 589 03 37 00)
G07641651Courtesy of MERCEDES-BENZ USA
