Steering wheel heater (LRH), block diagram - GF46.11-P-0001-02LE

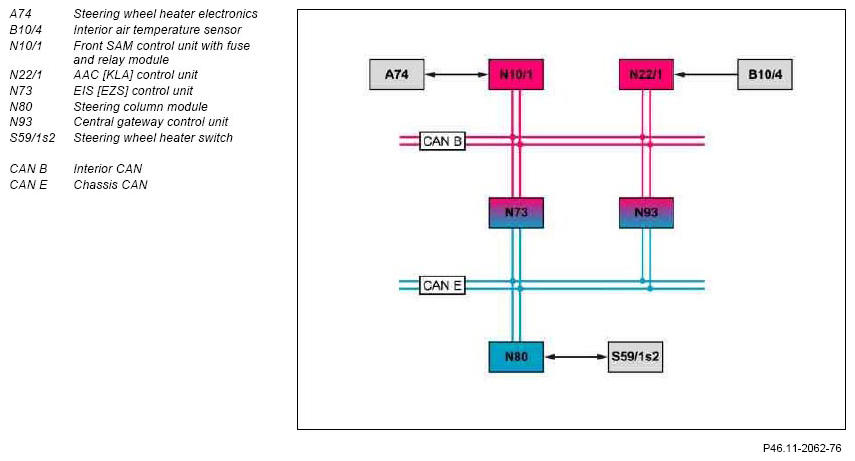

Fig 1: Steering Wheel Heater (LRH) Block Diagram

G07641532

Courtesy of MERCEDES-BENZ USA
