Speed-sensitive power steering (SPS [PML]), location of components - GF46.50-P-0001-01LE

Shown on model 221

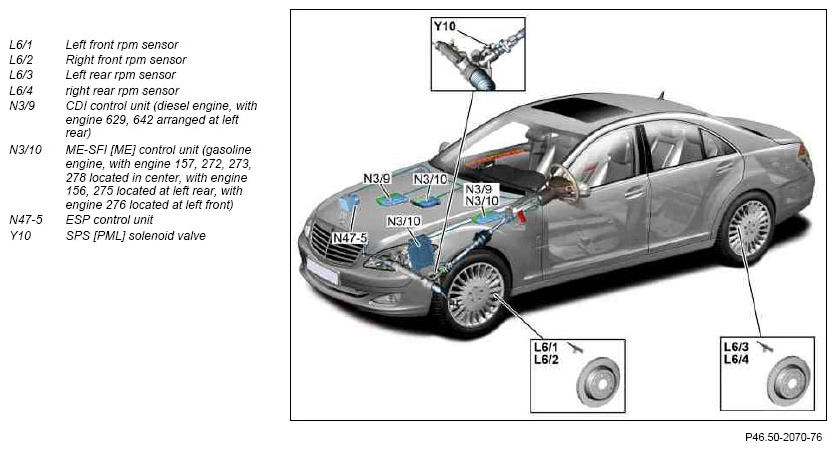

Fig 1: Identifying Speed-Sensitive Power Steering (SPS [PML]) Components Location
G07641553Courtesy of MERCEDES-BENZ USA
