Supplemental restraint system (SRS), location of components - GF91.60-P-0002-01SC

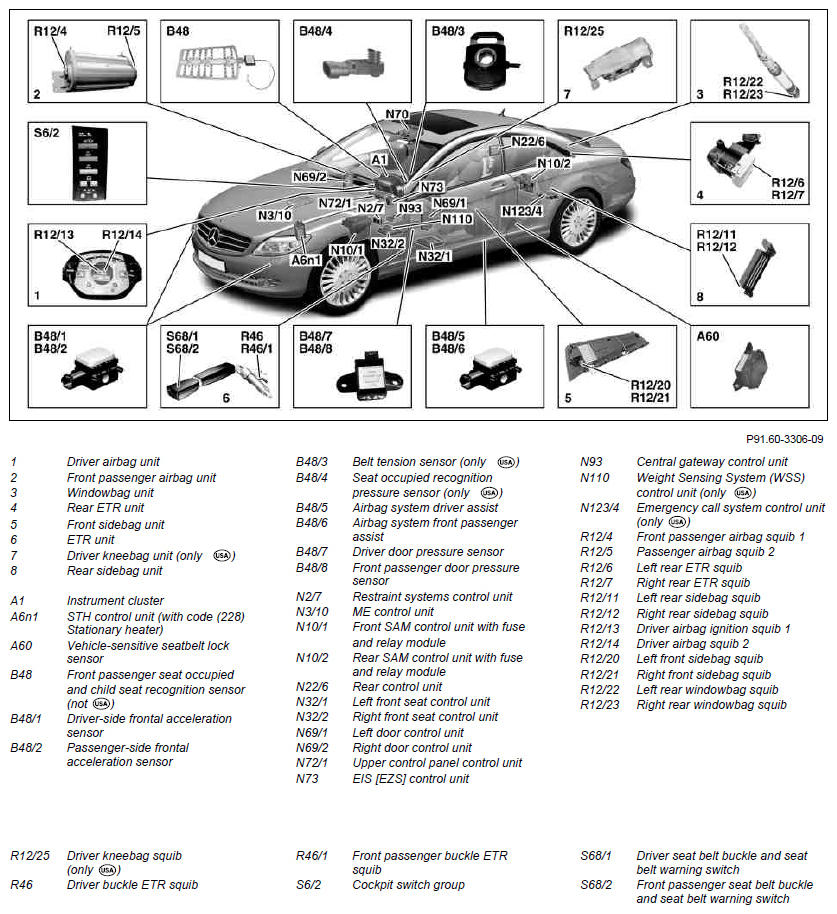

Fig 1: Identifying Supplemental Restraint System (SRS) Components Location

G07642681

Courtesy of MERCEDES-BENZ USA
