Supplemental restraint system (SRS), component networking - GF91.60-P-0002-02SC

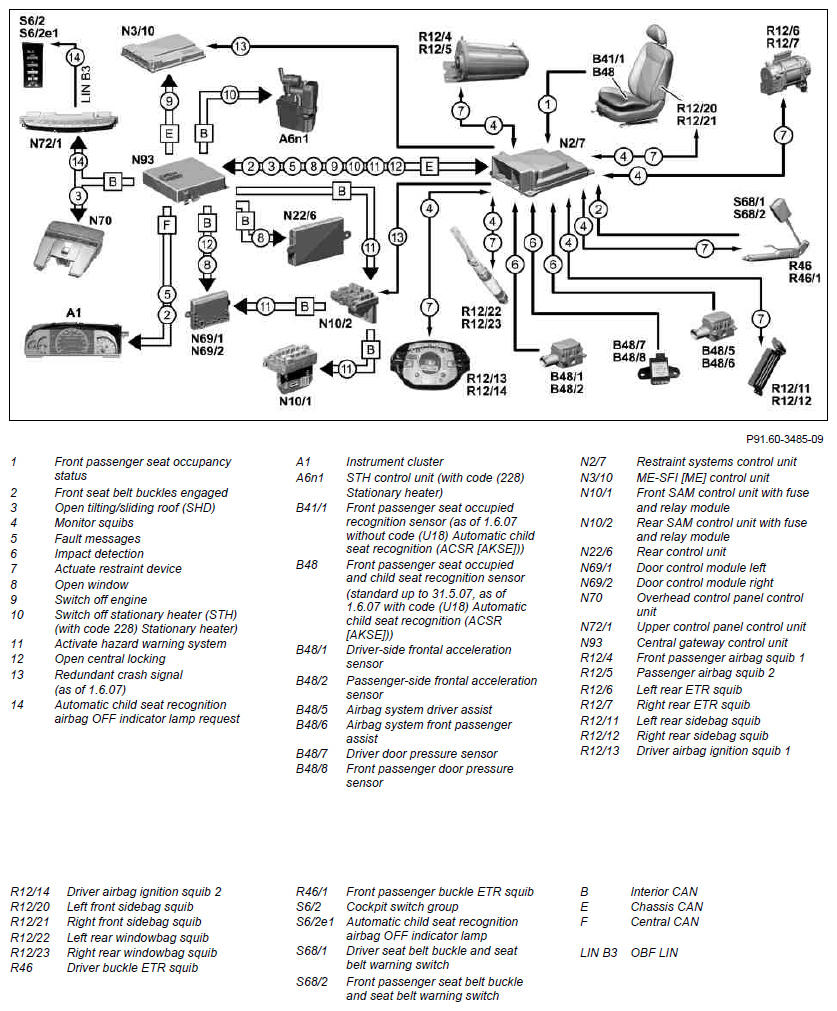

Fig 1: Identifying Supplemental Restraint System (SRS) Networking Components

G07642682

Courtesy of MERCEDES-BENZ USA
