Supplemental restraint system (SRS), block diagram - GF91.60-P-0002-03LA

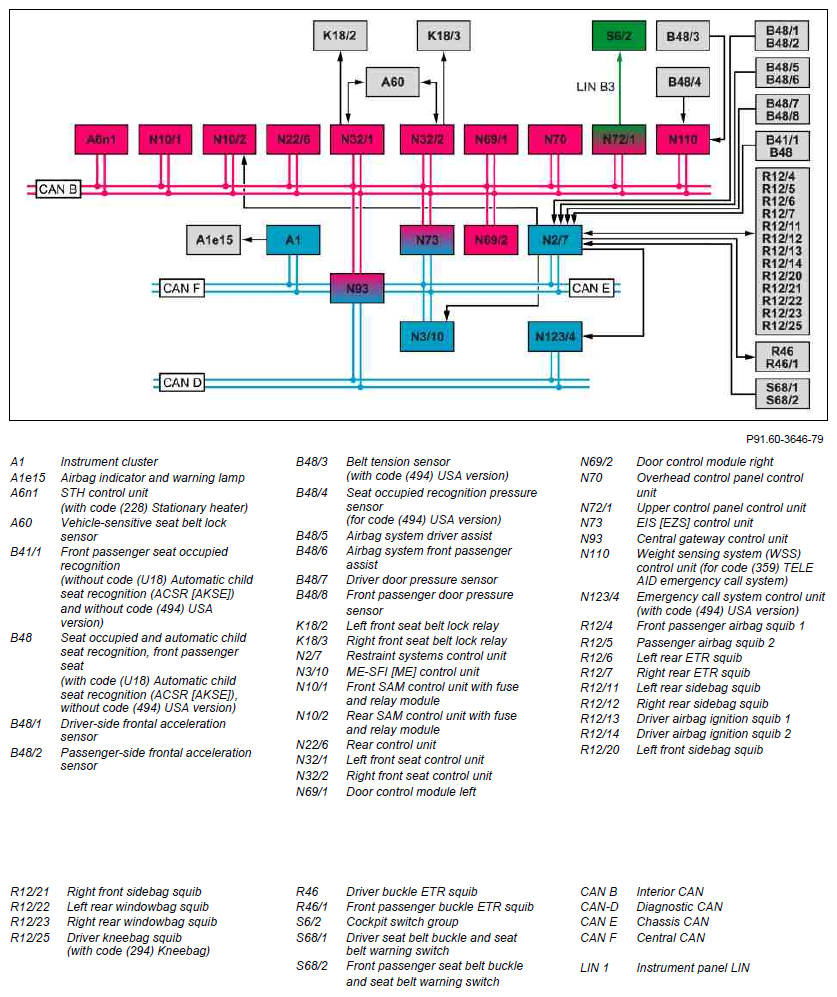

Fig 1: Identifying Supplemental Restraint System (SRS) Block Diagram

G07642684

Courtesy of MERCEDES-BENZ USA
