Seat heater (SIH) location of components - GF91.30-P-0003-02LA

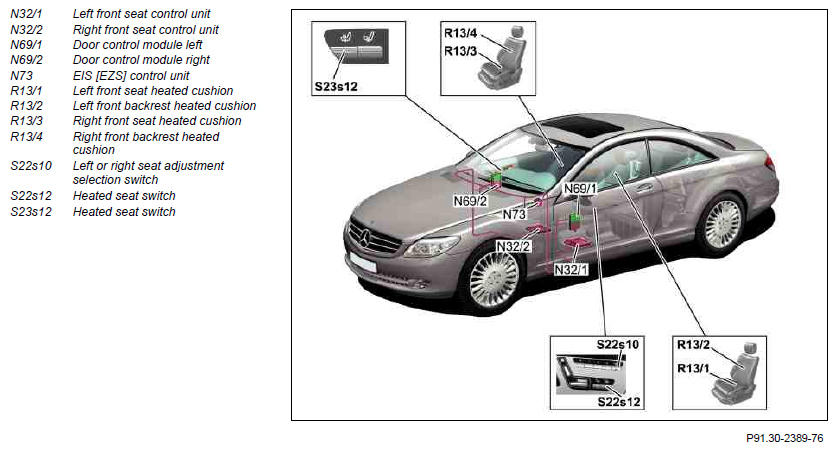

Fig 1: Identifying Seat Heater (SIH) Components Location

G07643521

Courtesy of MERCEDES-BENZ USA
