PRE-SAFE, networking of components - GF91.40-P-0001-02SC

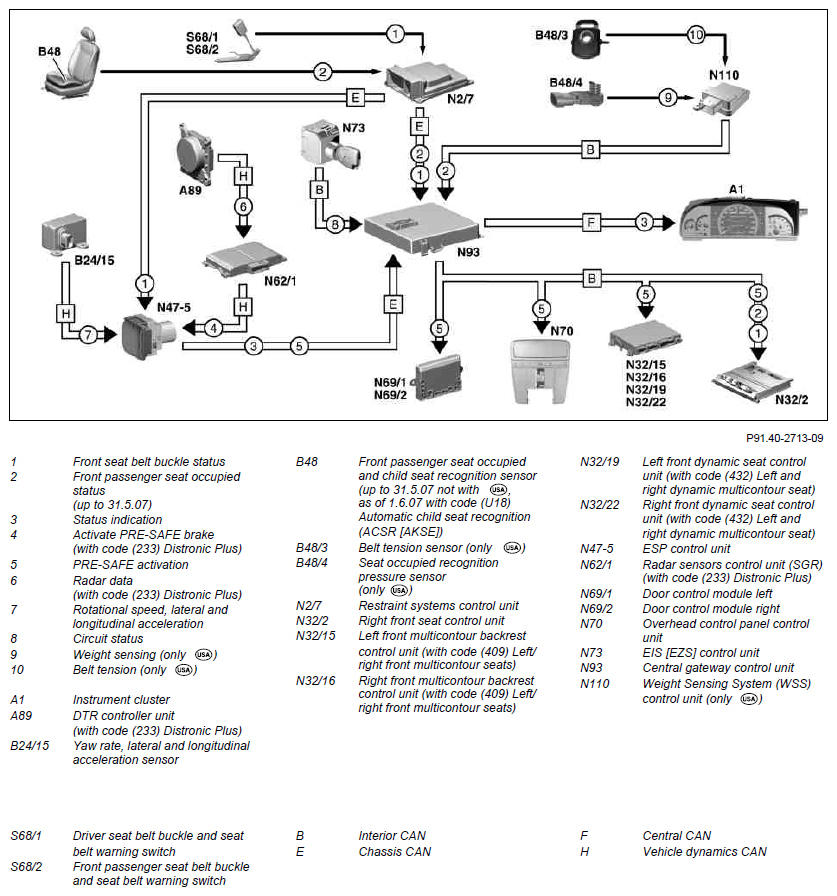

Fig 1: Identifying PRE-SAFE Networking Components

G07642671

Courtesy of MERCEDES-BENZ USA
