PRE-SAFE, block diagram - GF91.40-P-0001-03LA

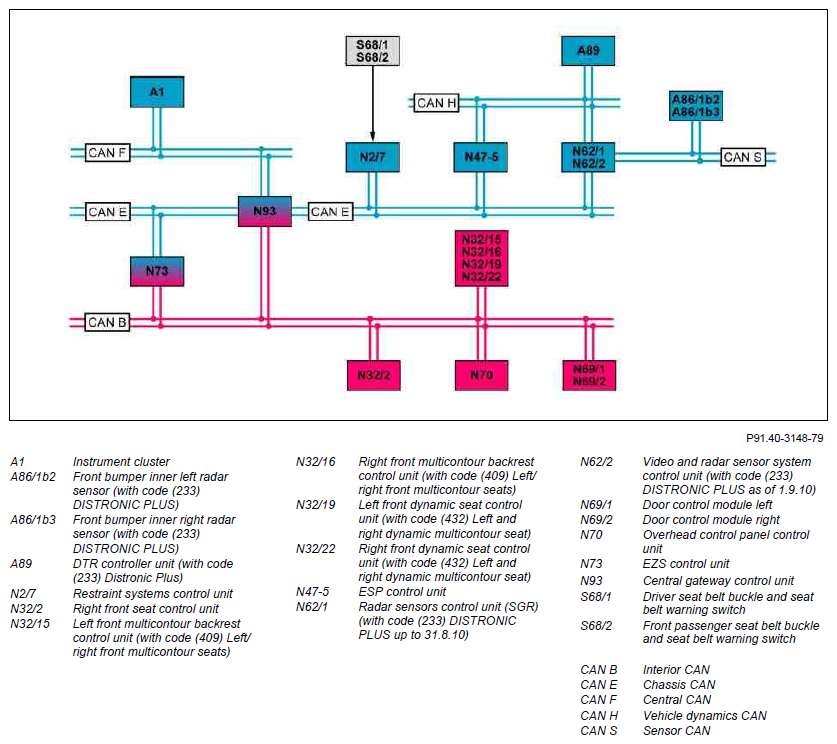

Fig 1: Identifying PRE-SAFE Block Diagram

G07642672

Courtesy of MERCEDES-BENZ USA
