Multicontour seat (MKS) block diagram - GF91.25-P-0001-06LE

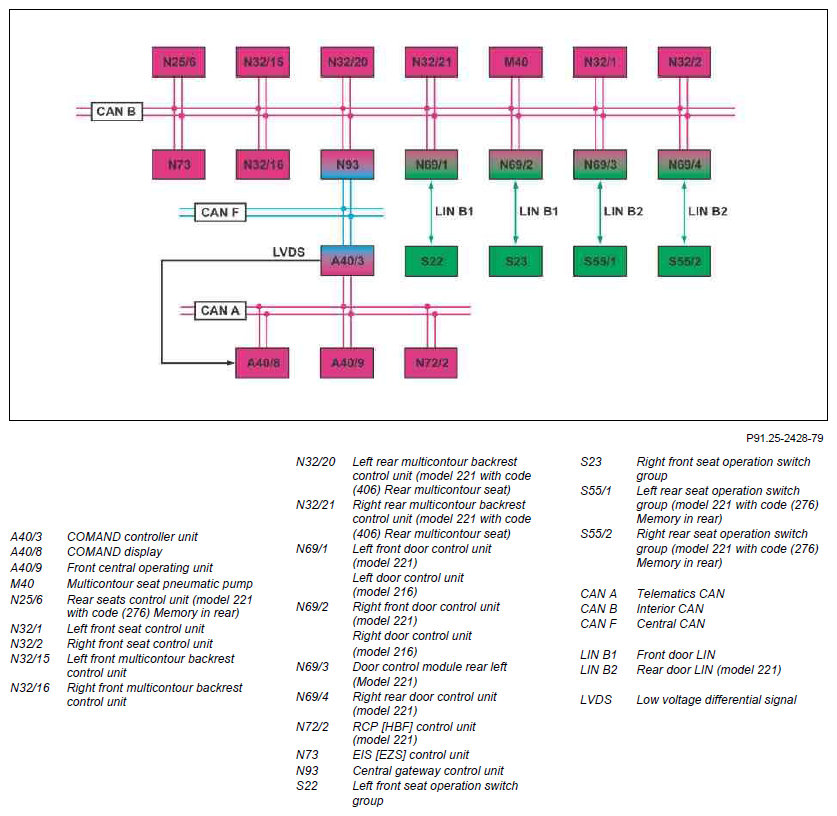

Fig 1: Identifying Multicontour Seat (Mks) Block Diagram

G07643467

Courtesy of MERCEDES-BENZ USA
