Multicontour seat (MCS), location of components - GF91.25-P-0001-04SX

Shown on model 221.0

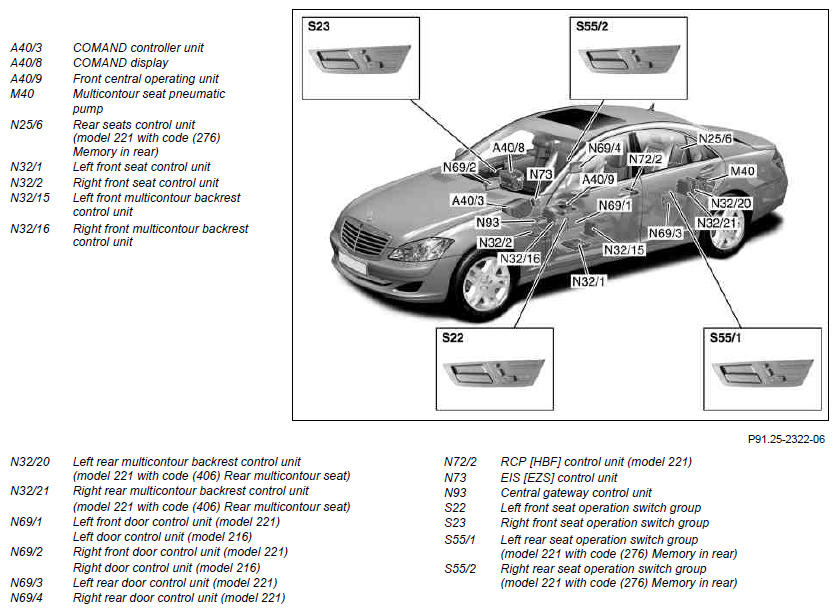

Fig 1: Identifying Multicontour Seat (MCS) Components Location

G07643465

Courtesy of MERCEDES-BENZ USA
