Multicontour seat (MCS), location of components - GF91.25-P-0001-04LE

Shown on model 221.0 (W221) model year 2009 /YoM 08

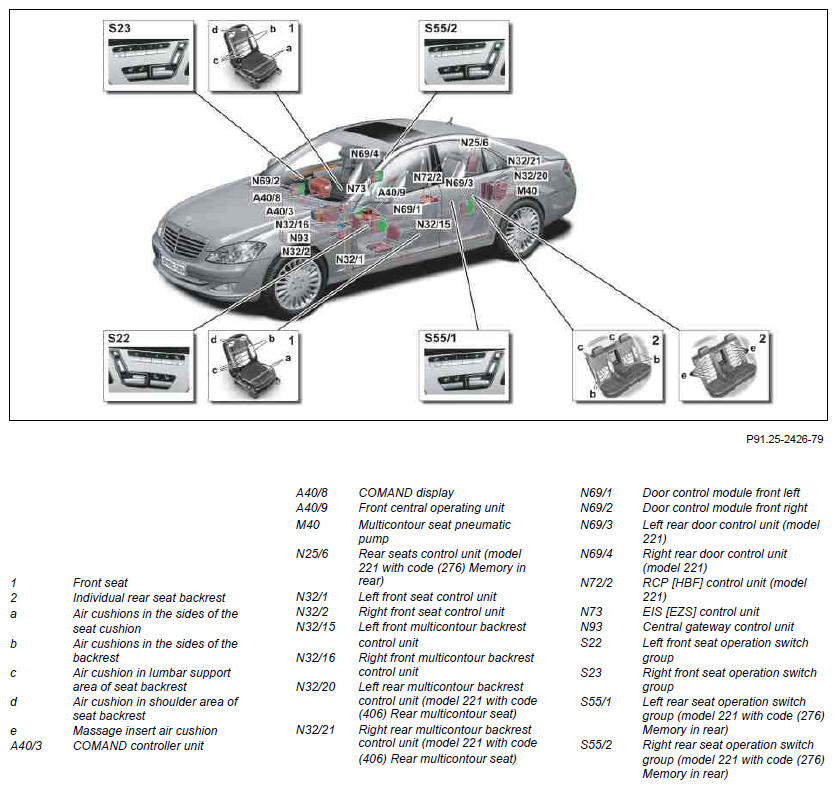

Fig 1: Identifying Multicontour Seat (MCS) Components Location
G07643464Courtesy of MERCEDES-BENZ USA
