Manually filling/deflating the air cushions on the dynamic seat, function - GF91.25-P-2011SX
MODEL 216.3, 221.0 /1 with CODE (432) Left and right dynamic multicontour seat up to Model Year 8
Function requirements
- Terminal 15R ON or
- Circuit 15 ON
Function

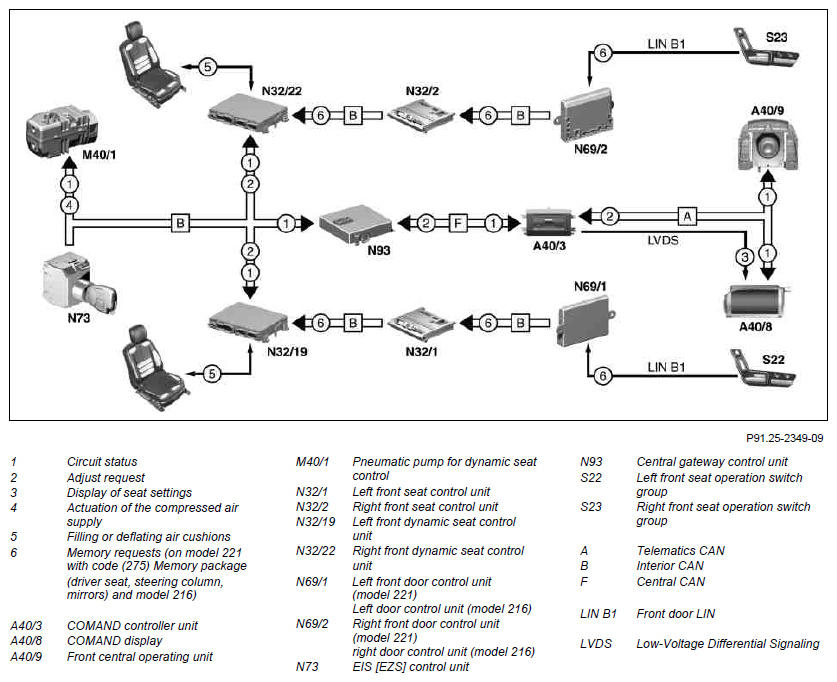

By pressing the multicontour seat quick select button (A40/9s4) in the front central operating unit, the "Seat adjustment" submenu in the COMAND display is activated.
The dynamic seats can be adjusted individually via the front central operating unit. The corresponding feedbacks are given via the COMAND display.
The following air cushions can be adjusted:
- Air cushion in upper leg area of seat cushion
- Air cushions in the sides of the seat cushion
- Air cushions in the sides of the backrest
- Air cushion in lumbar support area of backrest
- Air cushion in shoulder area of seat backrest
On model 221 with code (275) Memory package (driver seat, steering column, mirrors) and model 216, current seat settings can be stored and called up via the seat operation switch group. The master control unit for this function is the seat control unit.
| Pneumatic pump for dynamic seat, component description | M40/1 | GF91.25-P-5204SX |
| Left front seat control unit, component description | N32/1 | GF91.29-P-5230SX |
| Right front seat control unit, component description | N32/2 | GF91.29-P-5240SX |
| Dynamic seat control unit, component description | N32/19, N32/22 | GF91.25-P-5202SX |
| Driver-side front door control unit, component description | N69/1 Model 216 |
GF72.29-P-6000SC |
| Passenger-side front door control unit, component description | N69/2 Model 216 |
GF72.29-P-6010SC |
| Electronic ignition/starter switch control unit (EIS) component description | N73 | GF80.57-P-6000SX |
| Central gateway control unit, component description | N93 | GF54.21-P-4170SX |
| Front seat adjustment switch group, component description | S22, S23 | GF91.29-P-5220SX |
