Lumbar adjustment block diagram - GF91.29-P-0008-02LE

IMPORTANTOn vehicles as of model year 2010 /YoM 09 and with code (867) SPLITVIEW, the SPLITVIEW display (A40/10) is installed instead of the COMAND display (A40/8).

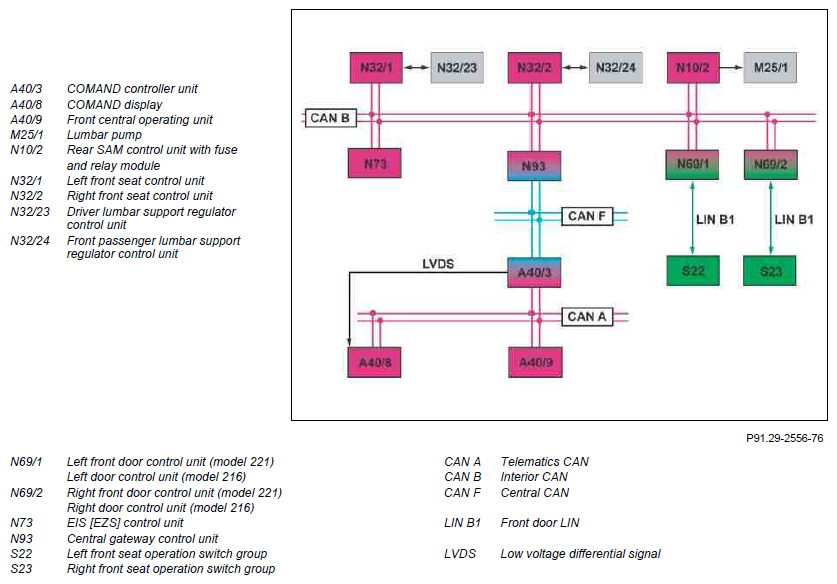

Fig 1: Identifying Lumbar Adjustment Block Diagram
G07643494Courtesy of MERCEDES-BENZ USA
