Heated seats (HS) block diagram - GF91.30-P-0003-03SC

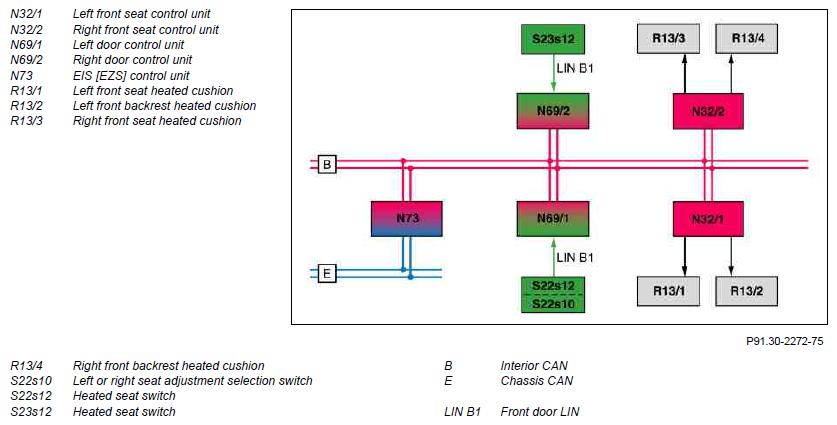

Fig 1: Identifying Heated Seats (HS) Block Diagram

G07643524

Courtesy of MERCEDES-BENZ USA
