Electrical seat ventilation, block diagram - GF91.30-P-0002-03SC

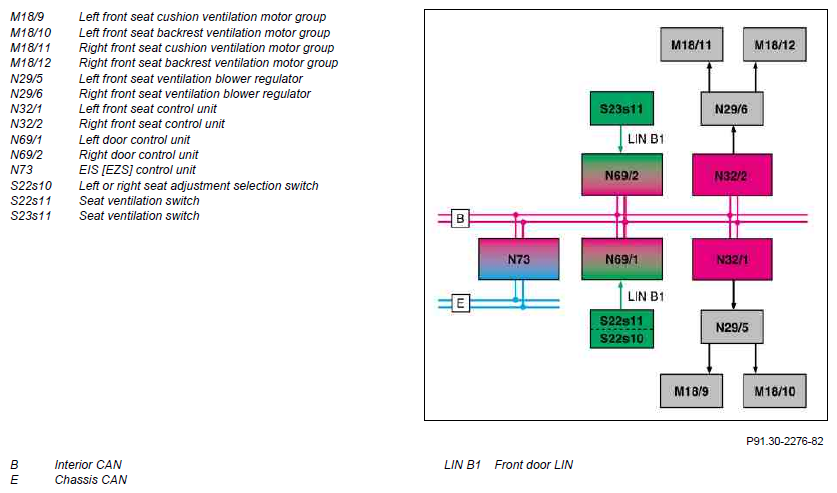

Fig 1: Identifying Electrical Seat Ventilation Block Diagram

G07643519

Courtesy of MERCEDES-BENZ USA
