Electric seat adjustment (ESA [ESV]), location of components - GF91.29-P-0004-01SC

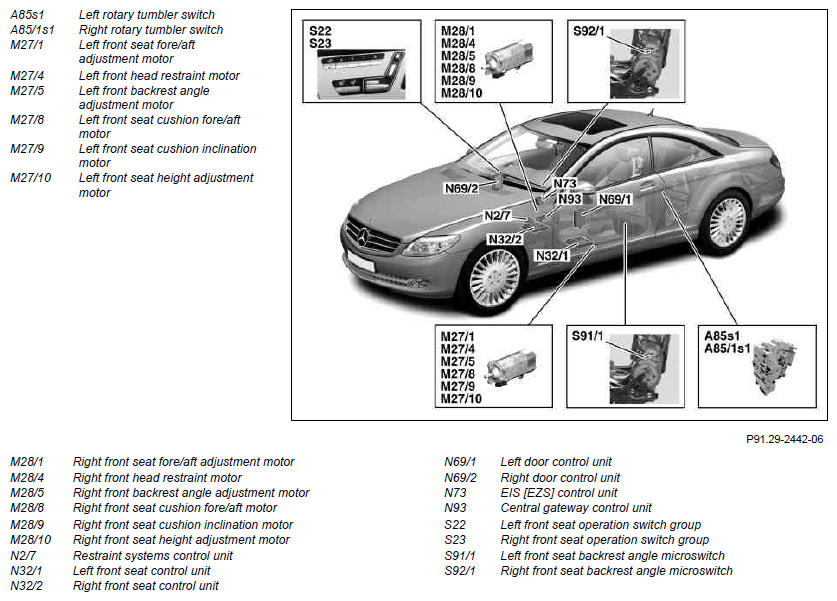

Fig 1: Identifying Electric Seat Adjustment (ESA, ESV) Components Location

G07643488

Courtesy of MERCEDES-BENZ USA
