Dynamic seat, networking of components - GF91.25-P-0002-02SX

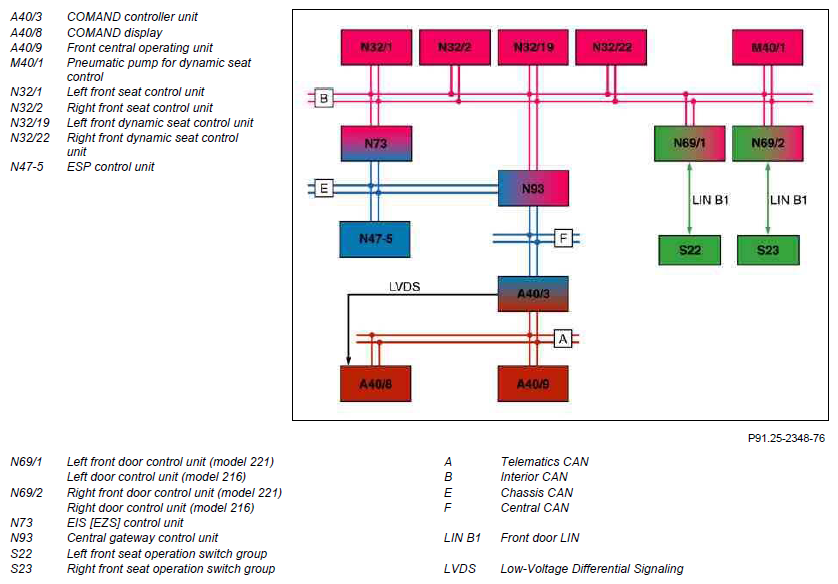

Fig 1: Identifying Dynamic Seat Networking Components

G07643472

Courtesy of MERCEDES-BENZ USA
