Dynamic seat, location of components - GF91.25-P-0002-01SX

Shown on model 221.0

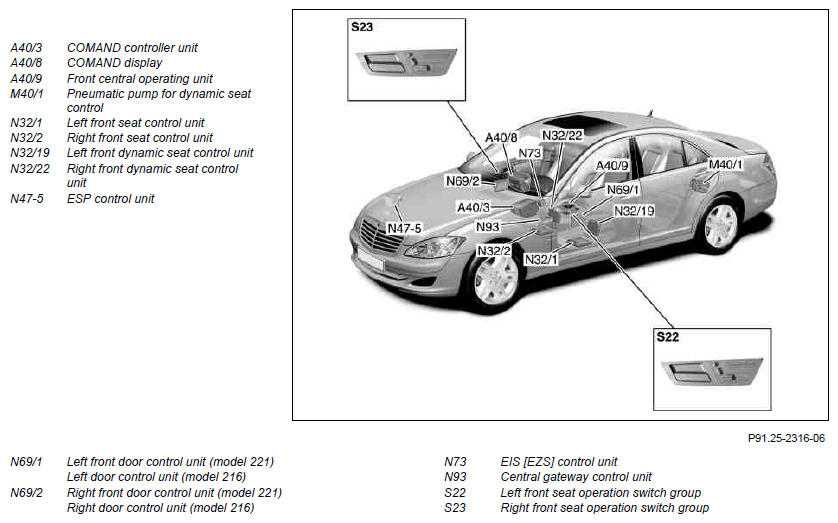

Fig 1: Identifying Dynamic Seat Components Locations

G07643471

Courtesy of MERCEDES-BENZ USA
