Dynamic seat, location of components - GF91.25-P-0002-01LE

Shown on model 221.0 (W221) YoM 08 / model year 2009

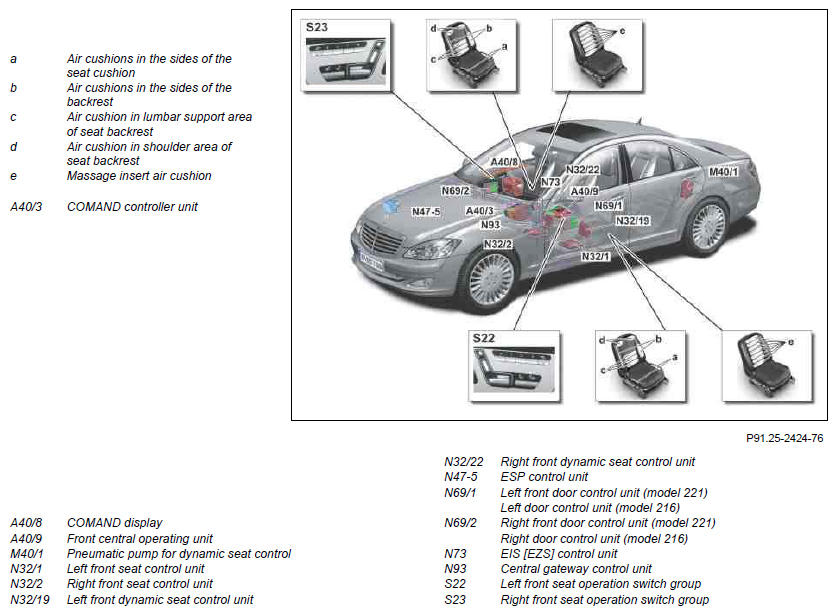

Fig 1: Identifying Dynamic Seat Components Location

G07643470

Courtesy of MERCEDES-BENZ USA
