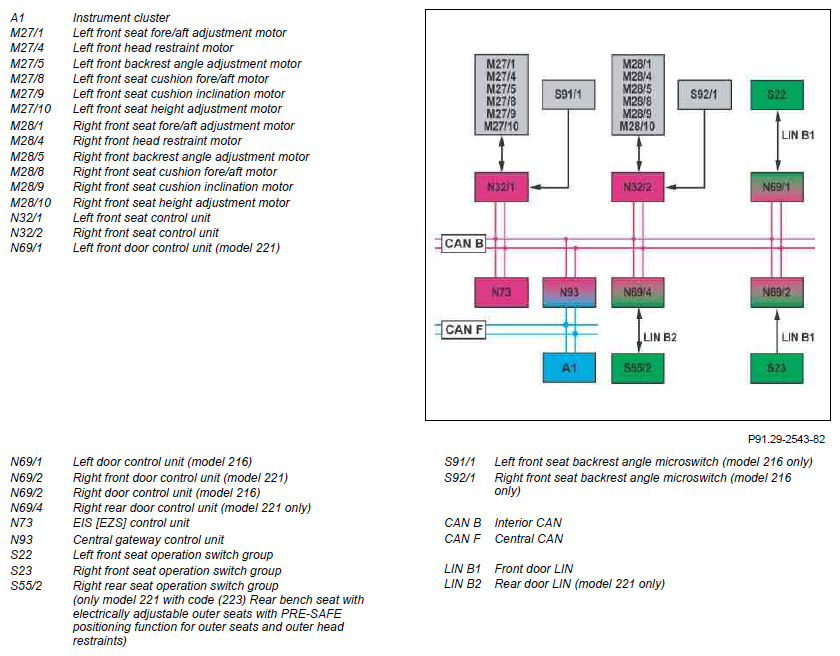

Block diagram of electric seat adjustment (ESA [ESV]) - GF91.29-P-0004-03LE

Fig 1: Identifying Electric Seat Adjustment (ESA, ESV) Block Diagram

G07643489

Courtesy of MERCEDES-BENZ USA
