Block diagram of electric seat adjustment (ESA [ESV] - GF91.29-P-0004-03SC

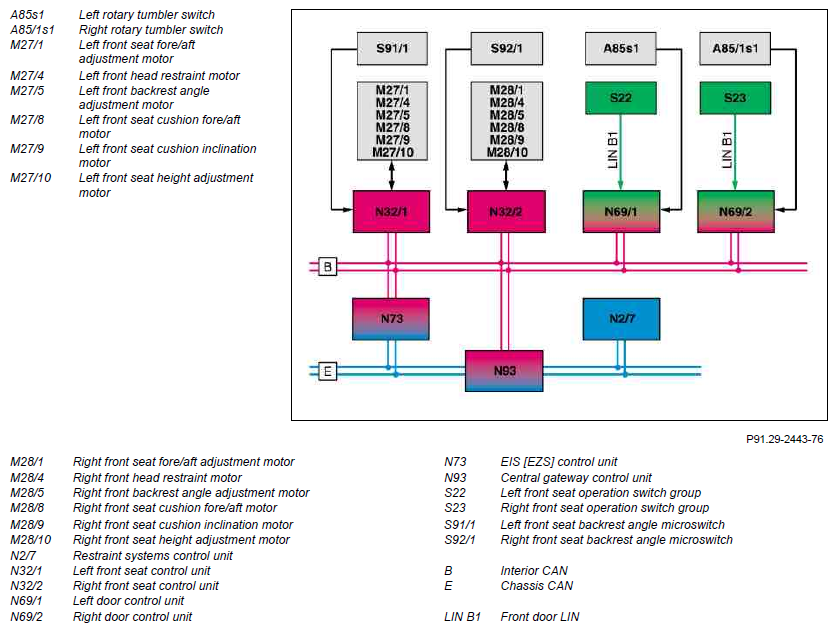

Fig 1: Identifying Electric Seat Adjustment (ESA, ESV) Block Diagram

G07643490

Courtesy of MERCEDES-BENZ USA
