Active Service System (ASSYST PLUS), location of components - GF00.20-P-0004-03LE

Illustrated on model 221.0

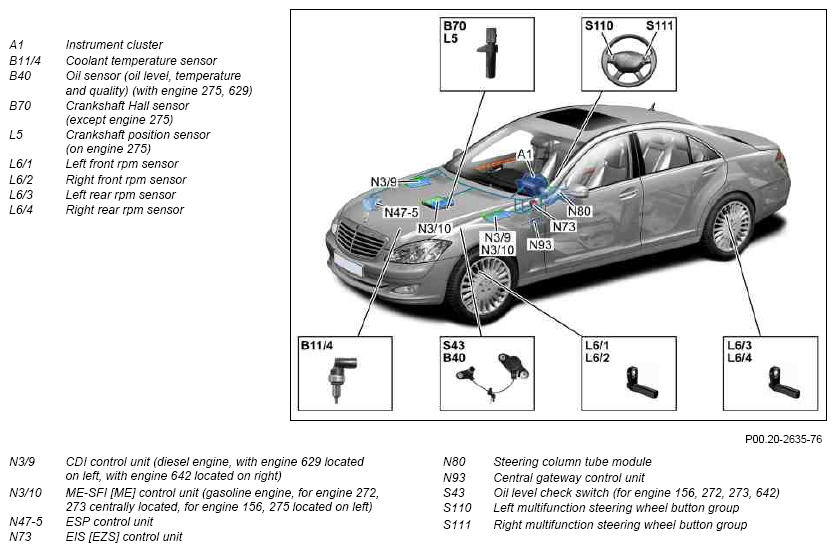

Fig 1: Identifying Active Service System Components Location

G07636802

Courtesy of MERCEDES-BENZ USA
