Active Service System (ASSYST PLUS), block diagram - GF00.20-P-0004-05LE

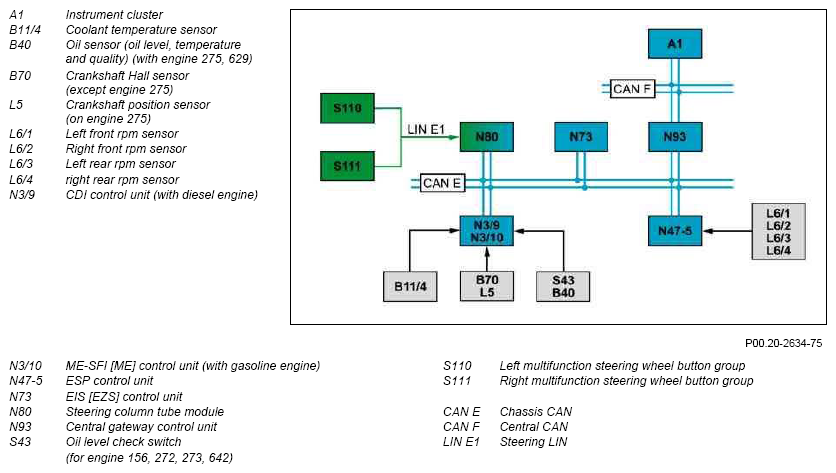

Fig 1: Identifying Active Service System Block Diagram

G07636803

Courtesy of MERCEDES-BENZ USA
