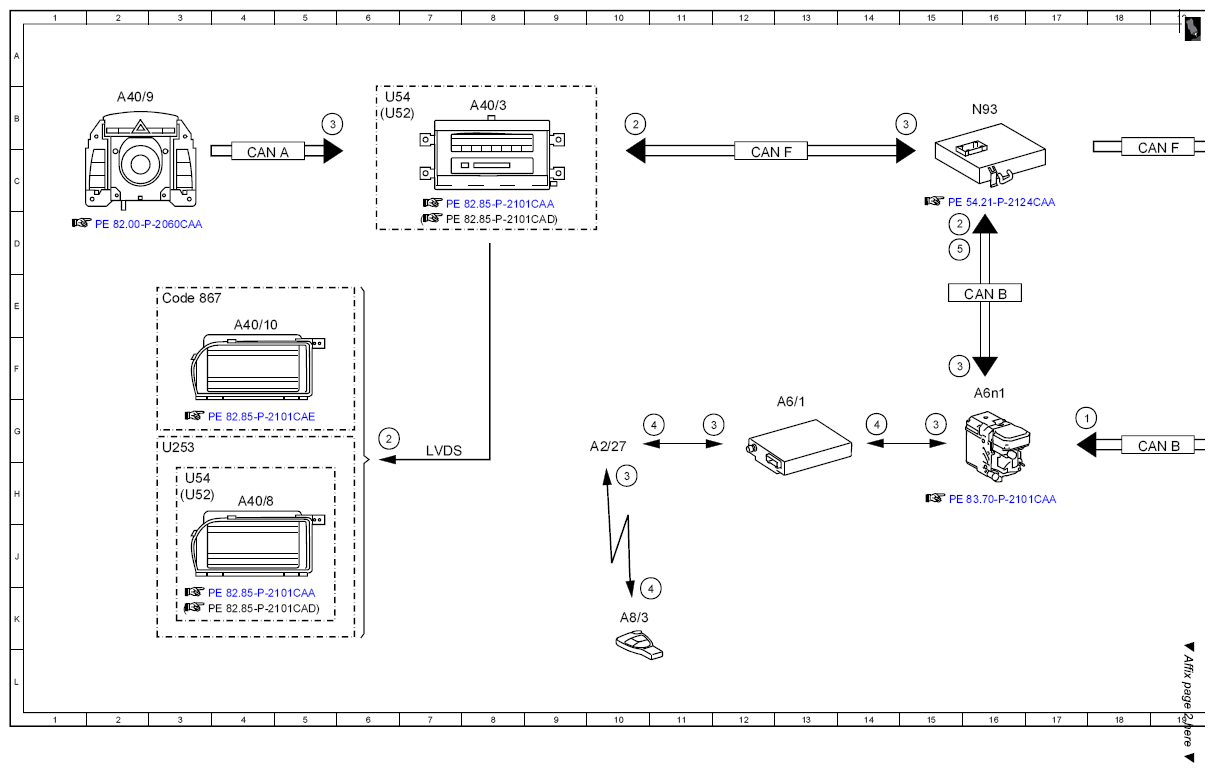

| 1 |
Circuit 15R, status |
17G |
| 2 |
Preselection time menu display, request |
10B |
| 2 |
Preselection time menu display, request |
6G |
| 2 |
Preselection time menu display, request |
15D |
| 3 |
Preselection time setting/activation, signal |
10H |
| 3 |
Preselection time setting/activation, signal |
11G |
| 3 |
Preselection time setting/activation, signal |
15G |
| 3 |
Preselection time setting/activation, signal |
15F |
| 3 |
Preselection time setting/activation, signal |
15B |
| 3 |
Preselection time setting/activation, signal |
5B |
| 4 |
Stationary heater control unit, message |
10K |
| 4 |
Stationary heater control unit, message |
11G |
| 4 |
Stationary heater control unit, message |
14G |
| 5 |
Activated preselection time, message |
20B |
| 5 |
Activated preselection time, message |
15D |
| A1 |
Instrument cluster |
21B |
| A2/27 |
Stationary heater antenna (Telestart) |
10G |
| A40/10 |
SPLITVIEW display |
4E |
| A40/3 |
COMAND control unit |
8B |
| A40/8 |
COMAND display |
4H |
| A40/9 |
Front central operating unit |
2B |
| A6/1 |
STH radio remote control receiver |
13G |
| A6n1 |
STH control unit |
16F |
| A8/1 |
Transmitter key |
21G |
| A8/3 |
STH radio remote control transmitter |
10K |
| CAN A |
Telematics CAN |
4C |
| CAN B |
Interior CAN |
18G |
| CAN B |
Interior CAN |
16E |
| CAN F |
Central CAN |
12C |
| CAN F |
Central CAN |
18C |
| Code 867 |
SPLITVIEW |
3E |
| LVDS |
Low voltage differential signal |
7H |
| N73 |
EIS [EZS] control unit |
20G |
| N93 |
Central gateway control unit |
16B |
| U253 |
Not valid for SPLITVIEW display |
3G |
| U52 |
Valid for Japan |
6B |
| U52 |
Valid for Japan |
3H |
| U54 |
Valid for all except Japan |
6B |
| U54 |
Valid for all except Japan |
3H |
