Stationary heater (STH), location of components - GF83.70-P-0006-01LA

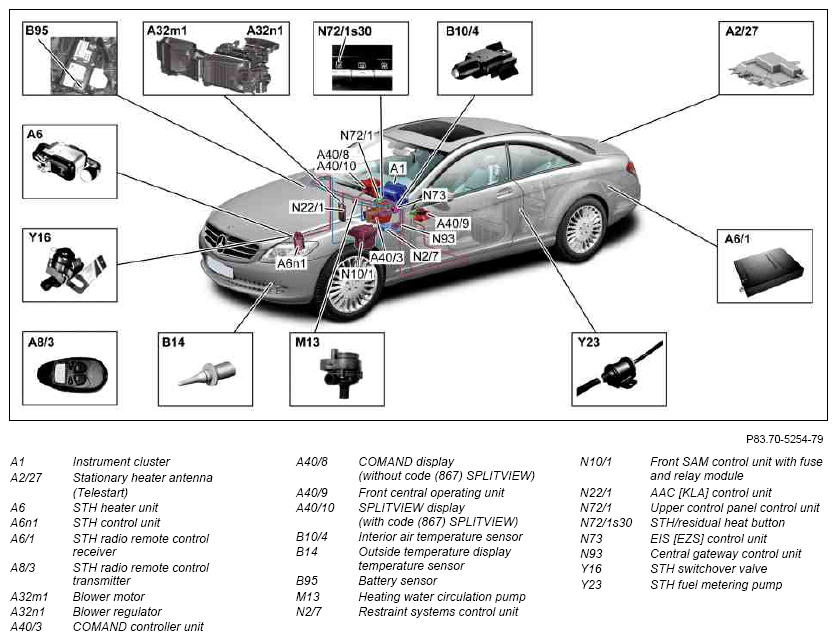

Fig 1: Stationary Heater (STH) Components Location

G07638822

Courtesy of MERCEDES-BENZ USA
