Stationary heater (STH) block diagram - GF83.70-P-0006-04SX

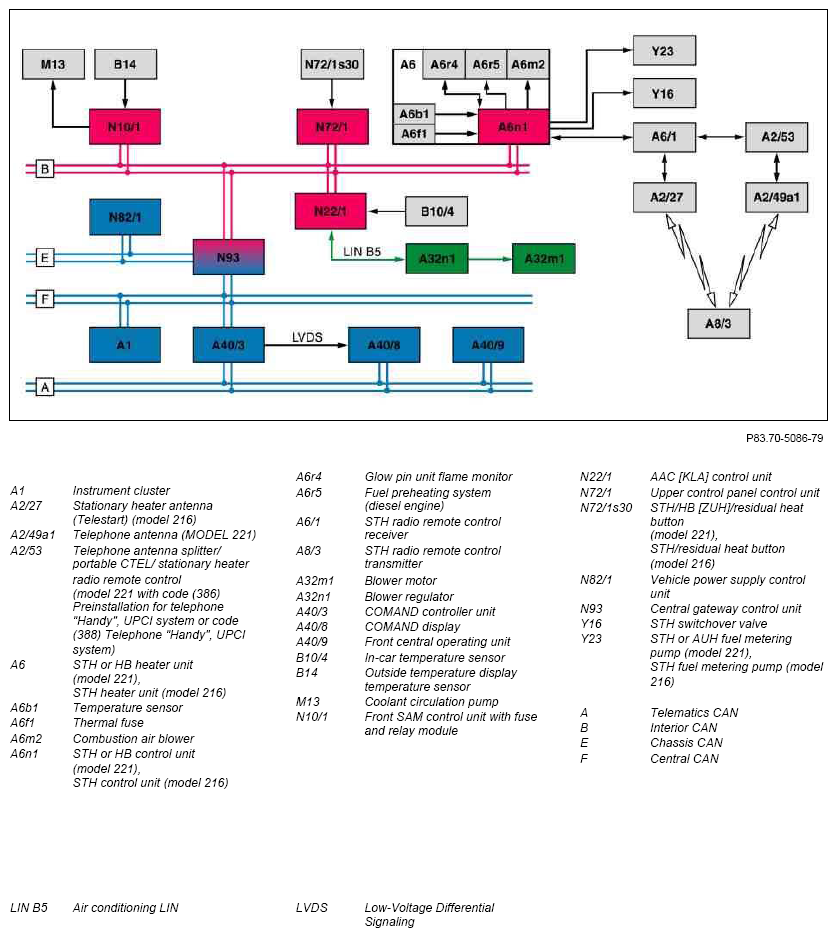

Fig 1: Identifying Stationary Heater (STH) Block Diagram

G07638825

Courtesy of MERCEDES-BENZ USA

Shown on model 221 as of 1.6.06, model 216
