Stationary heater (STH) block diagram - GF83.70-P-0006-04LE

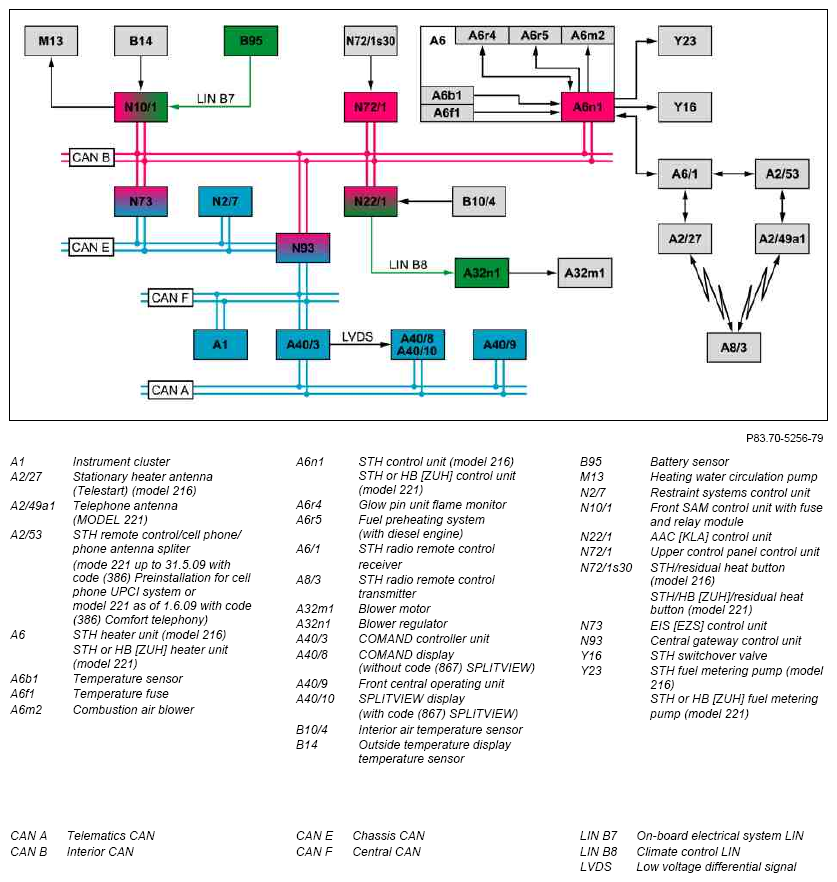

Fig 1: Identifying Stationary Heater (STH) Block Diagram

G07638824

Courtesy of MERCEDES-BENZ USA
