Refrigerant pressure sensor, component description - GF83.40-P-2193SX
MODEL 216.3, 221.0 /1 up to Model Year 8
Shown on model 221.0
Location

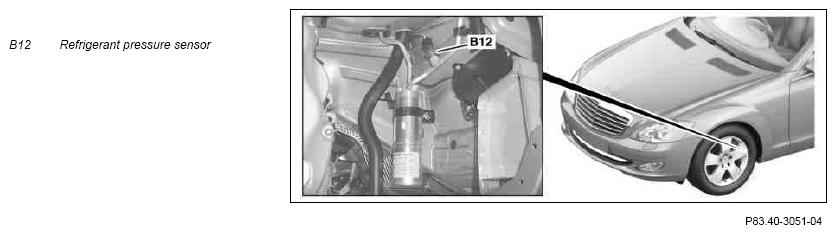

The refrigerant pressure sensor is located in the rear in the left front wheelhouse.
Task
The refrigerant pressure sensor is used for measuring the refrigerant pressure.
The value determined by the refrigerant pressure sensor is directly read in by the AAC [KLA] control unit (N22/1).
