Condenser, component description - GF83.40-P-2188SX
MODEL 216.3, 221.0 /1 up to Model Year 8
Shown on model 221.0
Location

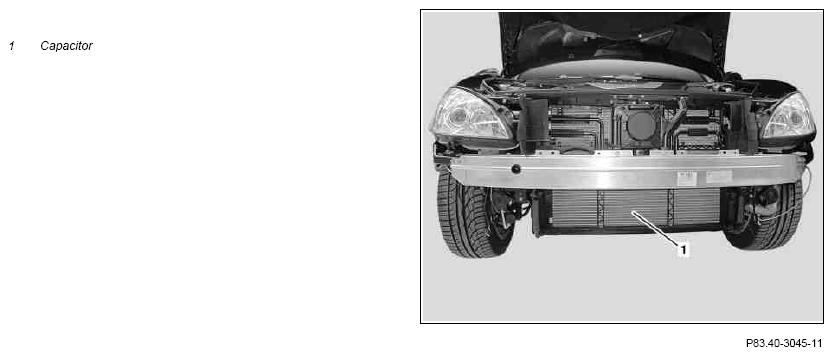

The condenser is located behind the radiator grille, immediately in front of the radiator.
Task
The condenser ensures that the refrigerant compressed by the refrigerant compressor (A9) changes state from gas to liquid.
Function
The hot refrigerant compressed by the refrigerant compressor flows into the condenser from above. Coiled pipes and lamellae absorb this heat extremely rapidly and give it off into the outside air.
This in turn cools the refrigerant. While it is cooling down to a specific, pressure-sensitive temperature, the refrigerant condenses and is liquefied. The liquid refrigerant exits at the bottom of the condenser and flows into the fluid reservoir.
