Component description of refrigerant compressor - GF83.55-P-2108SX
ENGINE 273.9, 275.9 in MODEL 216.3 up to Model Year 8
ENGINE 272.9, 273.9, 629.9, 642.9 in MODEL 221.0 up to Model Year 8
ENGINE 272.9, 273.9, 275.9, 629.9, 642.9 in MODEL 221.1 up to Model Year 8

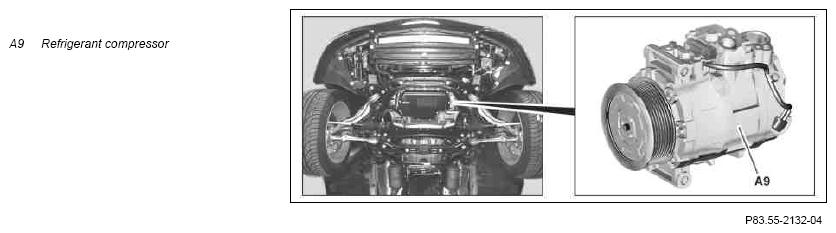

Shown on model 221.0 with engine 272.9
Location
The refrigerant compressor is located at the bottom left on the engine.
Task
The refrigerant compressor is responsible for drawing in and compressing the refrigerant and pumps the refrigerant through the system.
The refrigerant compressor is directly actuated by the AAC [KLA] control unit (N22/1).
