Blower regulator, component description - GF83.10-P-2051SX
MODEL 216.3, 221.0 /1 up to Model Year 8
Illustrated on model 221

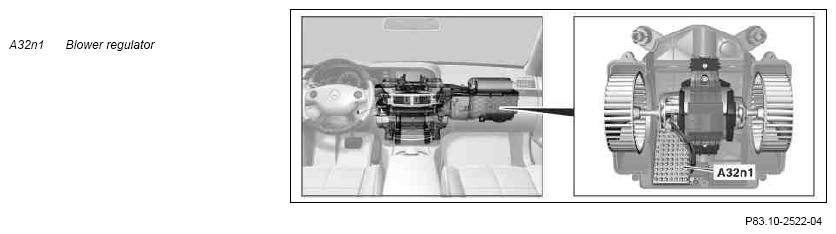

Location
The blower regulator is located in the air conditioner housing next to the blower motor (A32m1).
Task
The blower regulator is connected via the AC LIN with the AAC [KLA] control unit (N22/1) for exchanging data.
Function
The blower regulator regulates the blower motor voltage supply as a function of the settings on the upper control panel control unit (N72/1) or on the front central operating unit (A40/9).
