Automatic air conditioning, location of components - GF83.40-P-0005-01LA

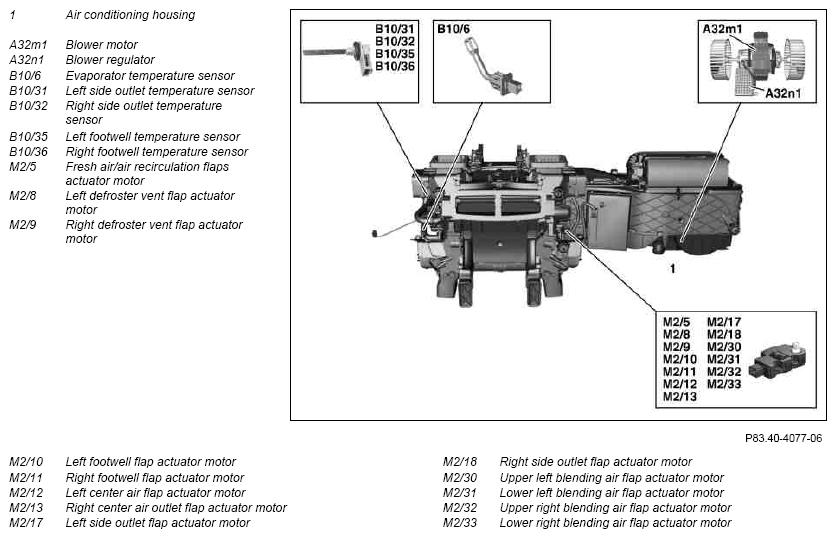

Fig 1: Identifying Automatic Air Conditioning Components Location (1 Of 3)

Courtesy of MERCEDES-BENZ USA

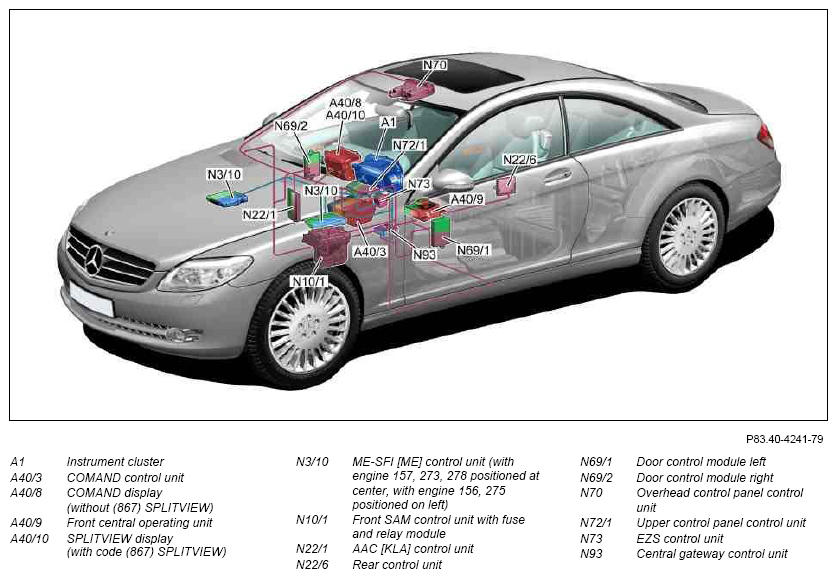

Fig 2: Identifying Automatic Air Conditioning Components Location (2 Of 3)

Courtesy of MERCEDES-BENZ USA

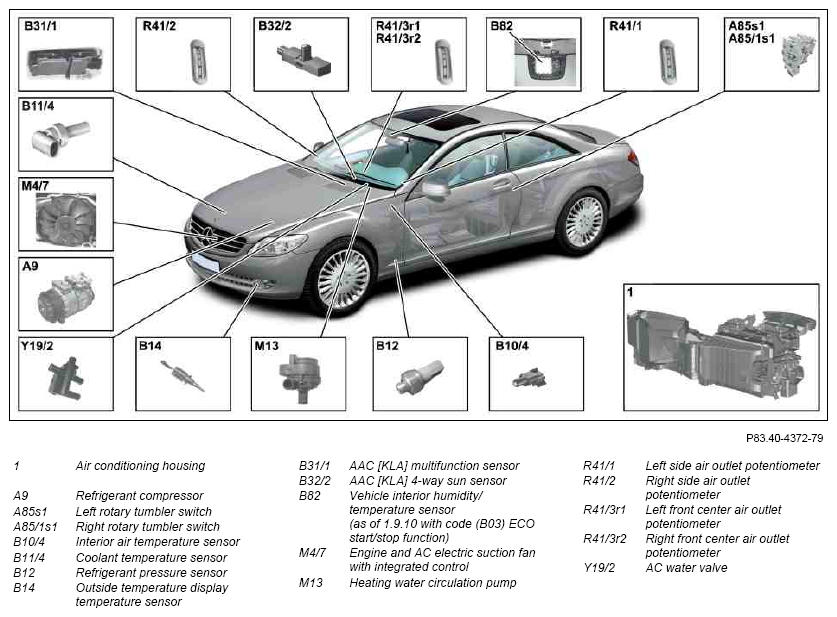

Fig 3: Identifying Automatic Air Conditioning Components Location (3 Of 3)

Courtesy of MERCEDES-BENZ USA
