Automatic air conditioning (AAC) component locations - GF83.40-P-0001-01SX

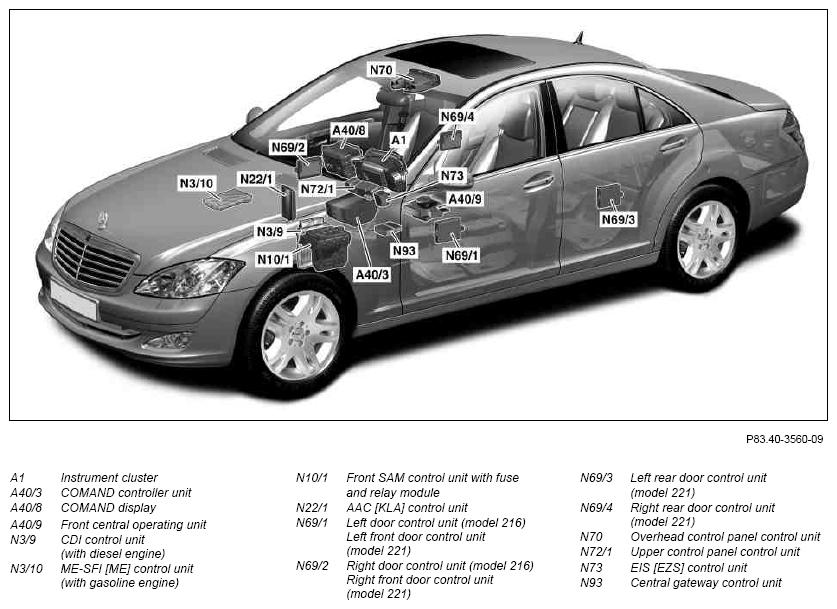

Fig 1: Automatic Air Conditioning (AAC) Components Location

Courtesy of MERCEDES-BENZ USA

Shown on model 221.0

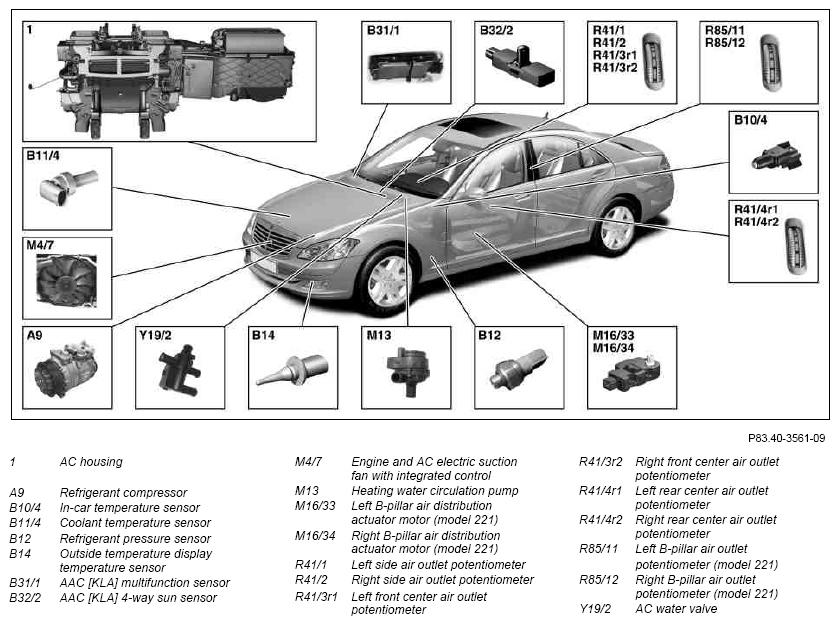

Fig 2: Automatic Air Conditioning (AAC) Components Location

Courtesy of MERCEDES-BENZ USA

Shown on model 221.0

Shown on air conditioner housing of model 221

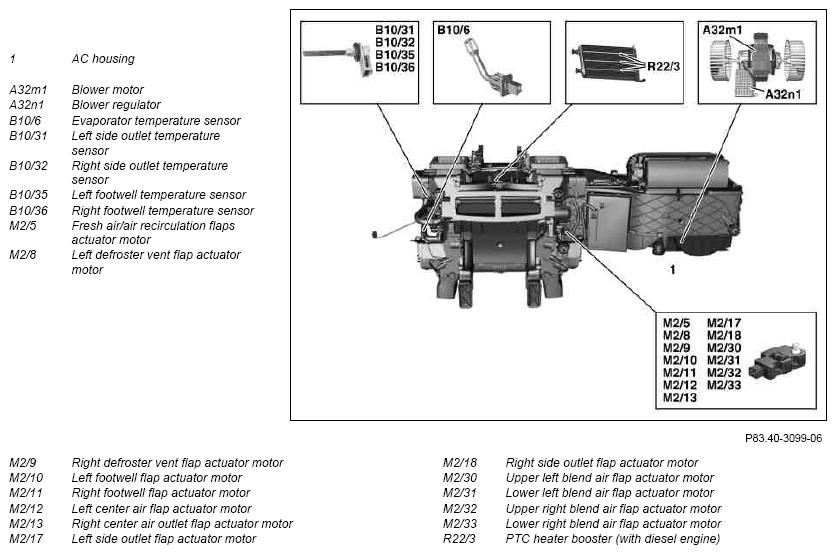

Fig 3: Automatic Air Conditioning (AAC) Housing Components Location

Courtesy of MERCEDES-BENZ USA
