Automatic air conditioning (AAC [KLA] block diagram - GF83.40-P-0001-05SX

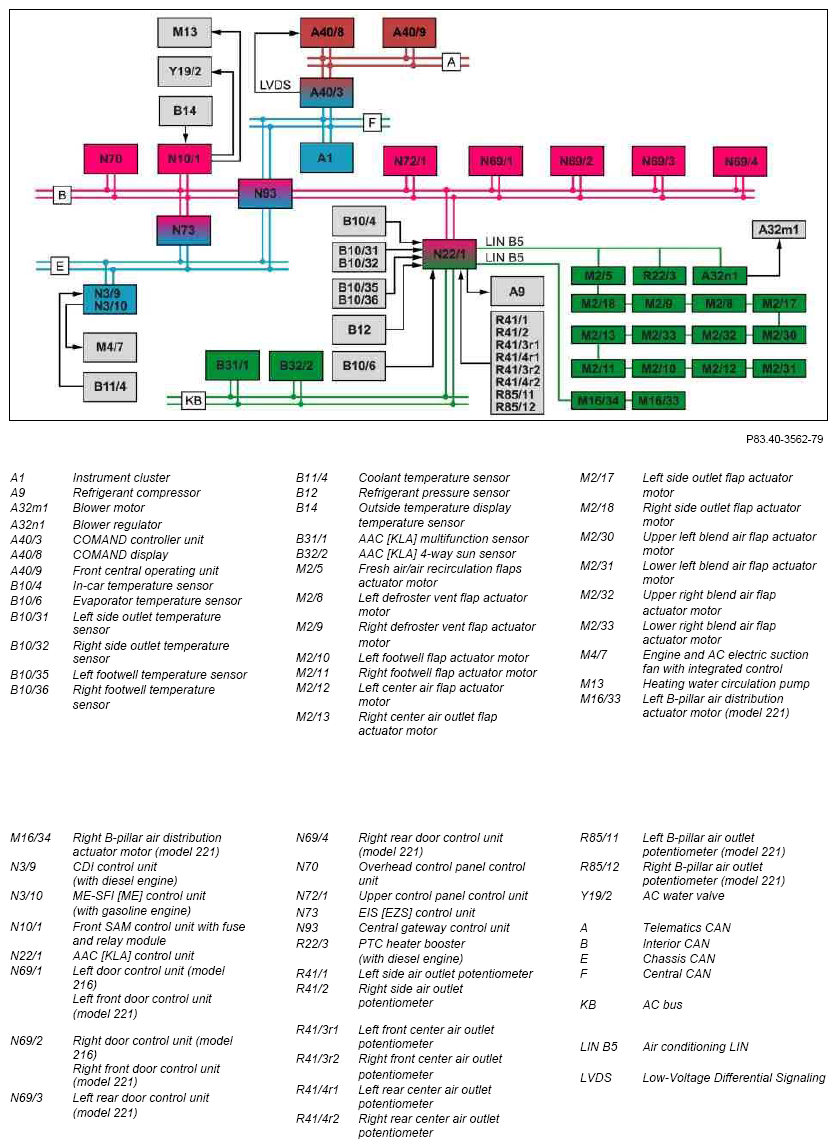

Fig 1: Automatic Air Conditioning (KLA) Block Diagram

G07638784

Courtesy of MERCEDES-BENZ USA

Shown on model 221.0
