Check visible area of poly-V belt for wear - AP13.22-P-1352SX
ENGINE 156, 157, 273, 278 in MODEL 216
ENGINE 156, 157, 272, 273, 276, 278 in MODEL 221

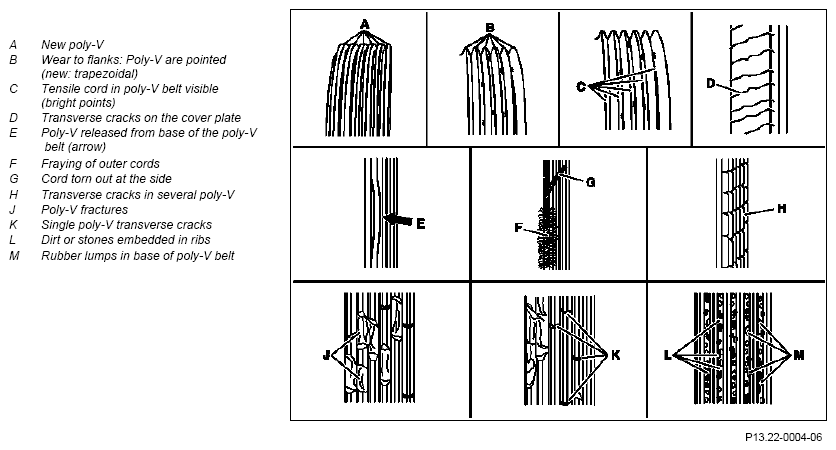

Damage diagram
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Checking | |||

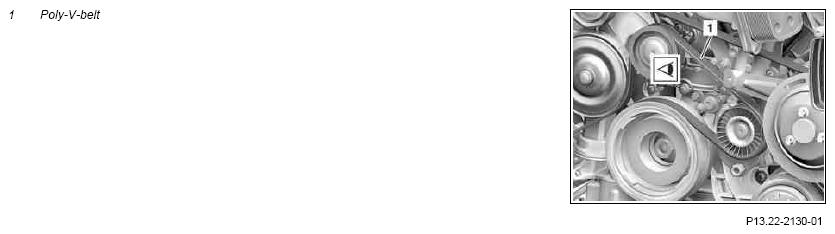

| 1 | Check poly-V belt (1) at the visible points for wear and compare with damage patterns | ||
| Remove/install belt drive components: Engine 272 except 272.974, except 273 | AR13.20-P-0001SX | ||
| Engine 276 | AR13.20-P-0001MMA | ||
| Engines 157, 278 Remove/install poly V-belt: |
AR13.20-P-0001MMB | ||
| Engine 156 | AR13.22-P-1202SMG | ||
| Engine 272.974 | AR13.22-P-1202SXH | ||
| 2 | Raise vehicle with vehicle lift | AR00.60-P-1000SX | |
| 3 | Remove bottom engine compartment paneling | AR61.20-P-1105SX | |
| Checking | |||
| 4 | Check poly-V belt (1) at the points which are visible when the vehicle is raised and compare with damage patterns | ||
| Remove/install belt drive components: Engine 272 except 272.974, except 273 |
AR13.20-P-0001SX | ||
| Engine 276 | AR13.20-P-0001MMA | ||
| Engines 157, 278 Remove/install poly V-belt: |
AR13.20-P-0001MMB | ||
| Engine 156 | AR13.22-P-1202SMG | ||
| Engine 272.974 | AR13.22-P-1202SXH | ||
| 5 | Install in the reverse order |
