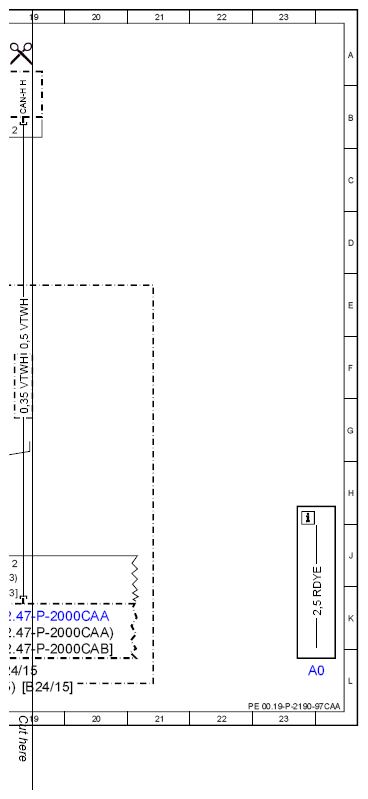

| A0 |
Color code key |
23L |

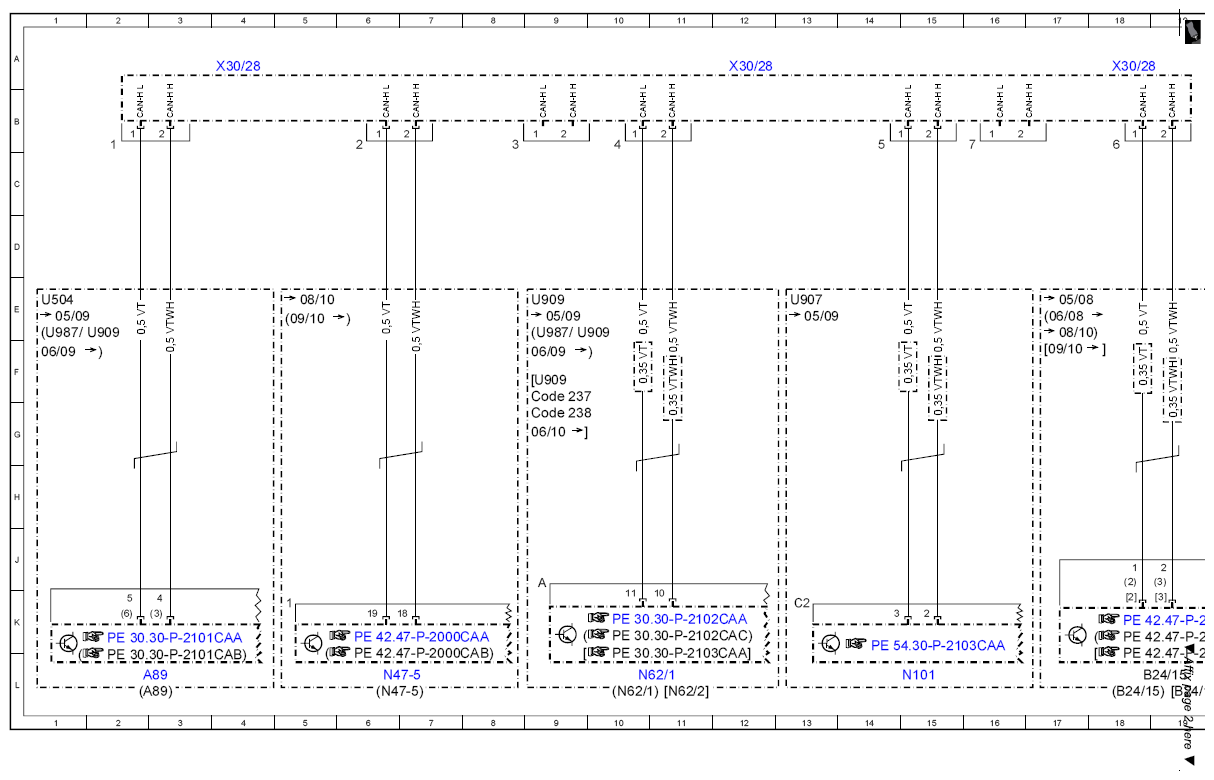

| A89 |
DTR control unit |
3L |
| A89 |
DTR control unit |
3L |
| B24/15 |
Yaw rate, lateral and longitudinal acceleration sensor |
19L |
| B24/15 |
Yaw rate, lateral and longitudinal acceleration sensor |
18L |
| B24/15 |
Yaw rate, lateral and longitudinal acceleration sensor |
18L |
| Code 237 |
|
9F |
| Code 238 |
Active Lane Keeping Assist |
9G |
| N101 |
Night vision assist control unit |
15L |
| N47-5 |
ESP control unit |
6L |
| N47-5 |
ESP control unit |
6L |
| N62/1 |
Radar sensors control unit (SGR) |
10L |
| N62/1 |
Radar sensors control unit (SGR) |
10L |
| N62/2 |
Video and radar sensor system control unit |
11L |
| U504 |
Valid for DTR |
1E |
| U907 |
Valid for night view assist |
13E |
| U909 |
Valid for DISTRONIC PLUS |
9F |
| U909 |
Valid for DISTRONIC PLUS |
2E |
| U909 |
Valid for DISTRONIC PLUS |
9E |
| U909 |
Valid for DISTRONIC PLUS |
9E |
| U987 |
Valid for Distronic Plus (light) |
1E |
| U987 |
Valid for Distronic Plus (light) |
9E |
| X30/28 |
Vehicle dynamics CAN voltage distributor connector |
12A |
| X30/28 |
Vehicle dynamics CAN voltage distributor connector |
4A |
| X30/28 |
Vehicle dynamics CAN voltage distributor connector |
18A |
