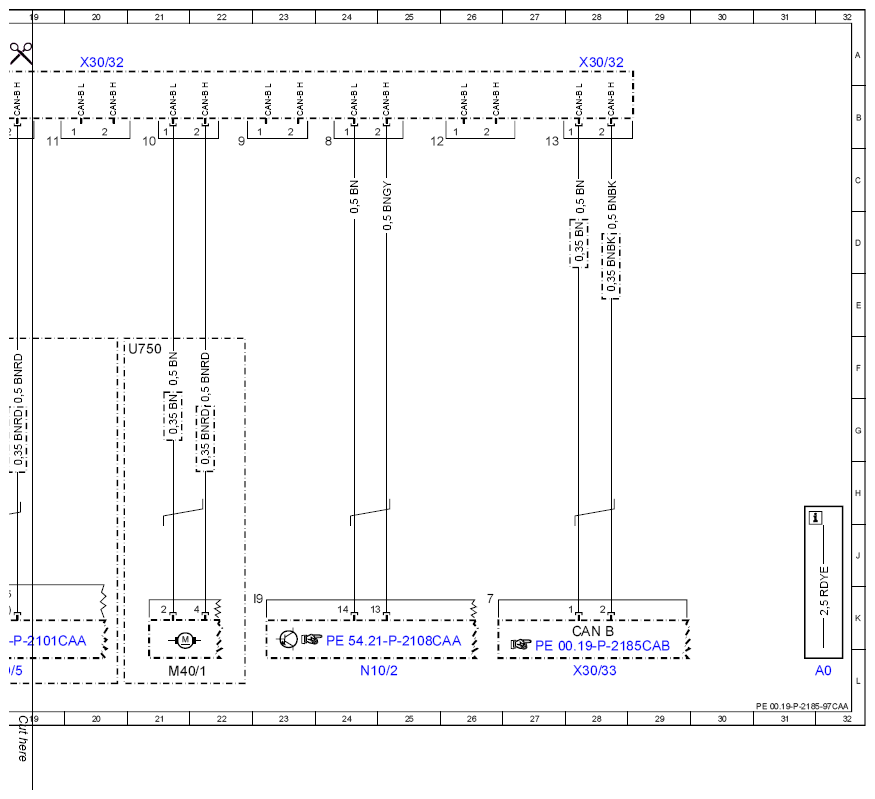

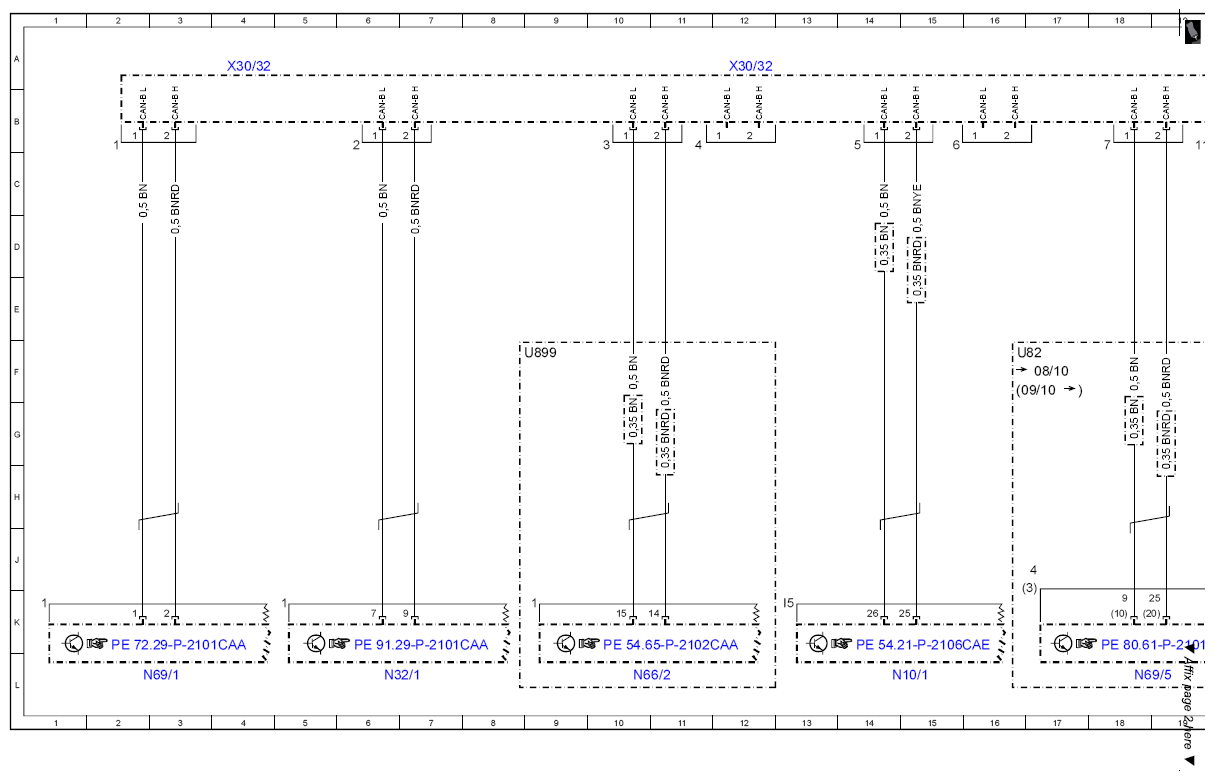

| A0 |
Color code key |
32L |
| CAN B |
Interior CAN |
28K |
| M40/1 |
Pneumatic pump for dynamic seat control |
21L |
| N10/1 |
Front SAM control unit with fuse and relay module |
15L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
24L |
| N32/1 |
Left front seat control unit |
6L |
| N66/2 |
Backup camera control unit |
10L |
| N69/1 |
Left door control unit |
3L |
| N69/5 |
KEYLESS-GO control unit |
18L |
| U750 |
Valid for dynamic seat (DS [FDS]) |
21F |
| U82 |
Valid for KEYLESS GO |
16F |
| U899 |
Valid for backup camera |
8F |
| X30/32 |
Left interior CAN/FFS [RBA] voltage distributor connector |
20A |
| X30/32 |
Left interior CAN/FFS [RBA] voltage distributor connector |
4A |
| X30/32 |
Left interior CAN/FFS [RBA] voltage distributor connector |
12A |
| X30/32 |
Left interior CAN/FFS [RBA] voltage distributor connector |
28A |
| X30/33 |
Right interior CAN/FFS [RBA] voltage distributor connector |
28L |
