Wiring diagram of drive train CAN - PE00.19-P-2170-99CAA

Code:	Designation:	Position:
A0	Explanation of color codes	31L
A80	Intelligent servo module for DIRECT SELECT	18L
N118	Fuel pump control module	2L
N118	Fuel pump control module	6L
N15/3	ETC [EGS] control module	25L
N3/10	ME-SFI [ME] control module	10L
N3/10	ME-SFI [ME] control module	14L
U152	Valid for engine 156	1G
U152	Valid for engine 156	12G
U484	Valid for M273 ME	12G
U484	Valid for M273 ME	20G
U779	Valid for engine 275	5G
U779	Valid for engine 275	24G
U897	Valid for intelligent servo module for DIRECT SELECT	16G
W18	Ground (left front seat crossmember)	13E
X30/21	Drive train CAN voltage distributor connector	5A
X30/21	Drive train CAN voltage distributor connector	12A
X30/21	Drive train CAN voltage distributor connector	20A
Y3/8	Electric control unit (VGS)	22L

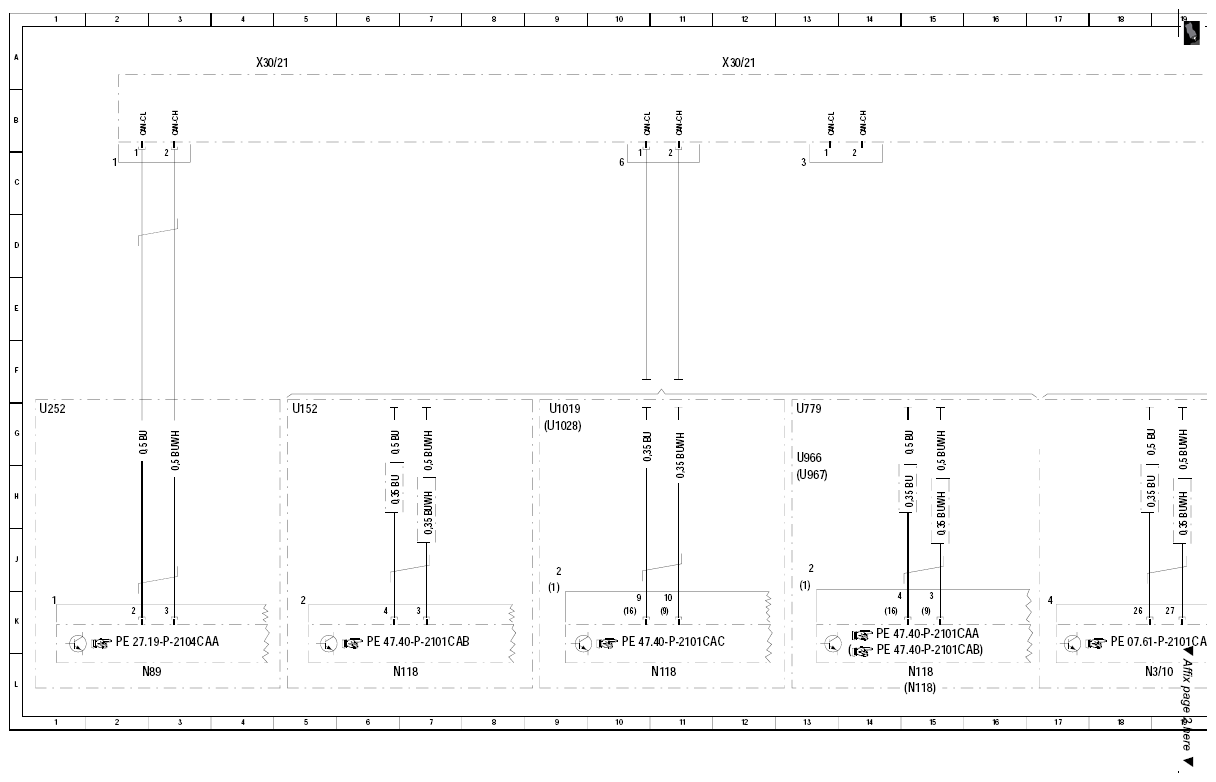

Fig 1: Drive Train CAN - Wiring Diagram (1 Of 3)

Courtesy of MERCEDES-BENZ USA

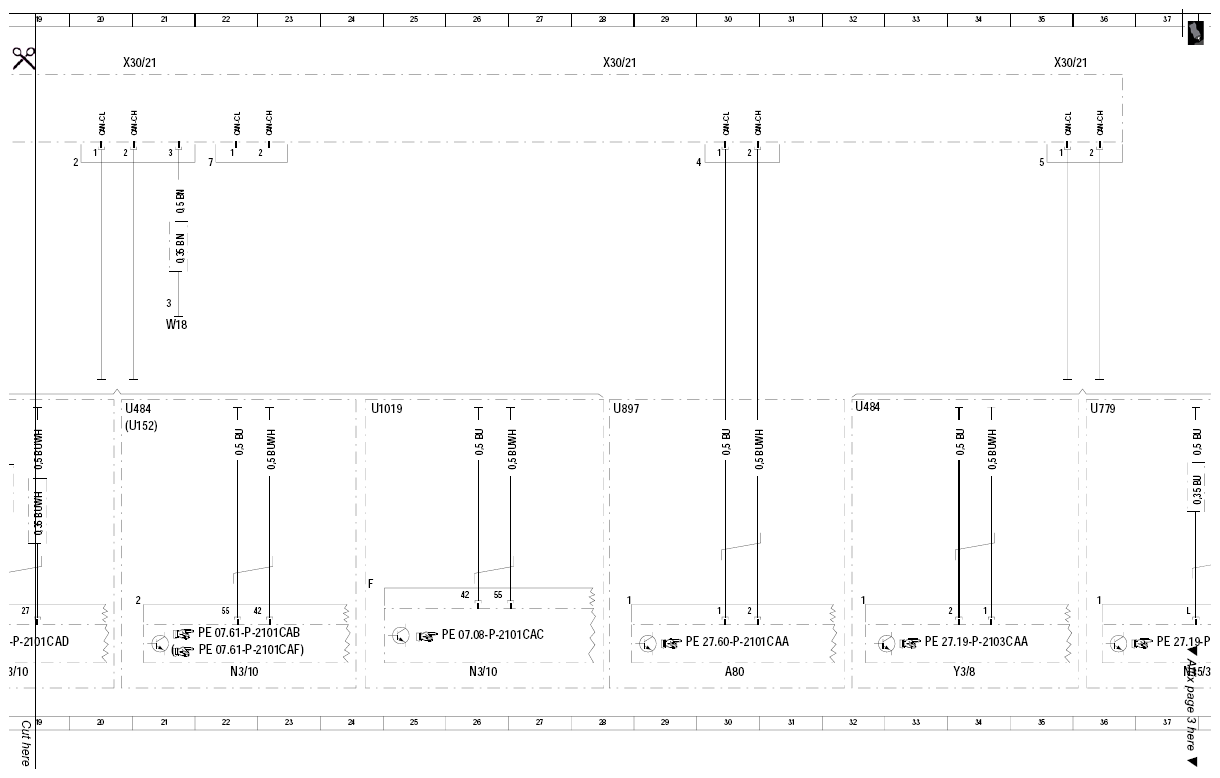

Fig 2: Drive Train CAN - Wiring Diagram (2 Of 3)

Courtesy of MERCEDES-BENZ USA

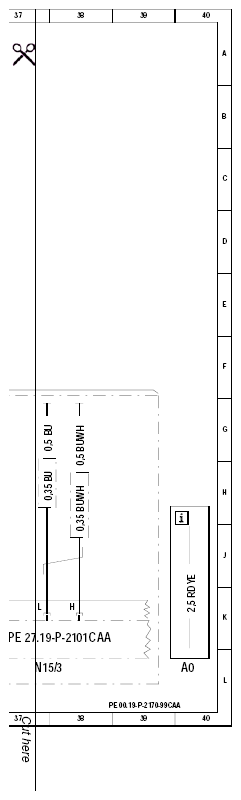

Fig 3: Drive Train CAN - Wiring Diagram (3 Of 3)

Courtesy of MERCEDES-BENZ USA
