| Code: |
Designation: |
Position: |
| A0 |
Explanation of color codes |
40A |
| B37 |
Accelerator pedal sensor |
36H |
| B4/3 |
Fuel tank pressure sensor |
16K |
| G3/3 |
Left O2 sensor upstream TWC [KAT] |
13K |
| G3/4 |
Right O2 sensor upstream TWC [KAT] |
10K |
| G3/5 |
Left O2 sensor downstream TWC [KAT] |
8K |
| G3/6 |
Right O2 sensor downstream TWC [KAT] |
9K |
| M33 |
AIR pump |
17L |
| M4/7 |
Electric suction fan engine and AC with integrated control |
28H |

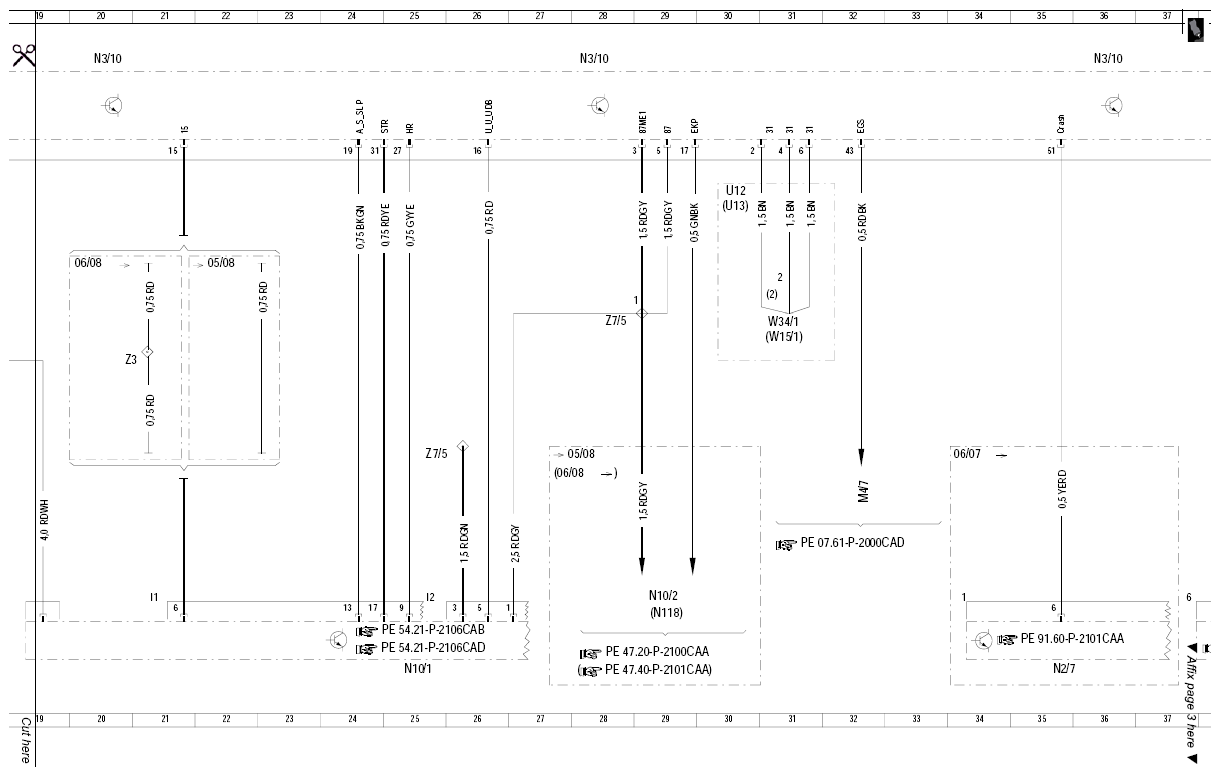

| N10/1 |
Front SAM control module with fuse and relay module |
21L |
| N10/2 |
Rear SAM control module with fuse and relay module |
24K |
| N2/7 |
Restraint systems control module |
31L |

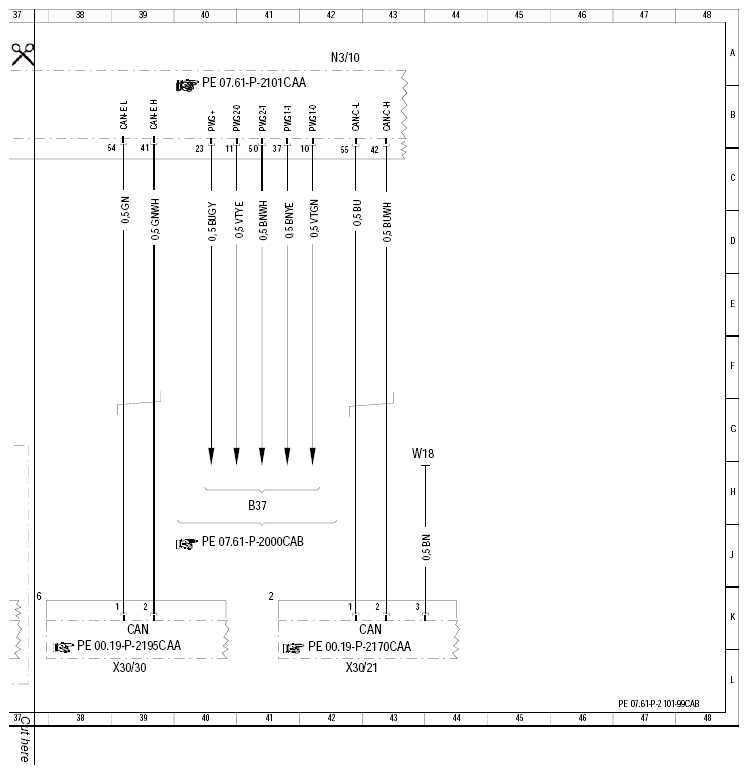

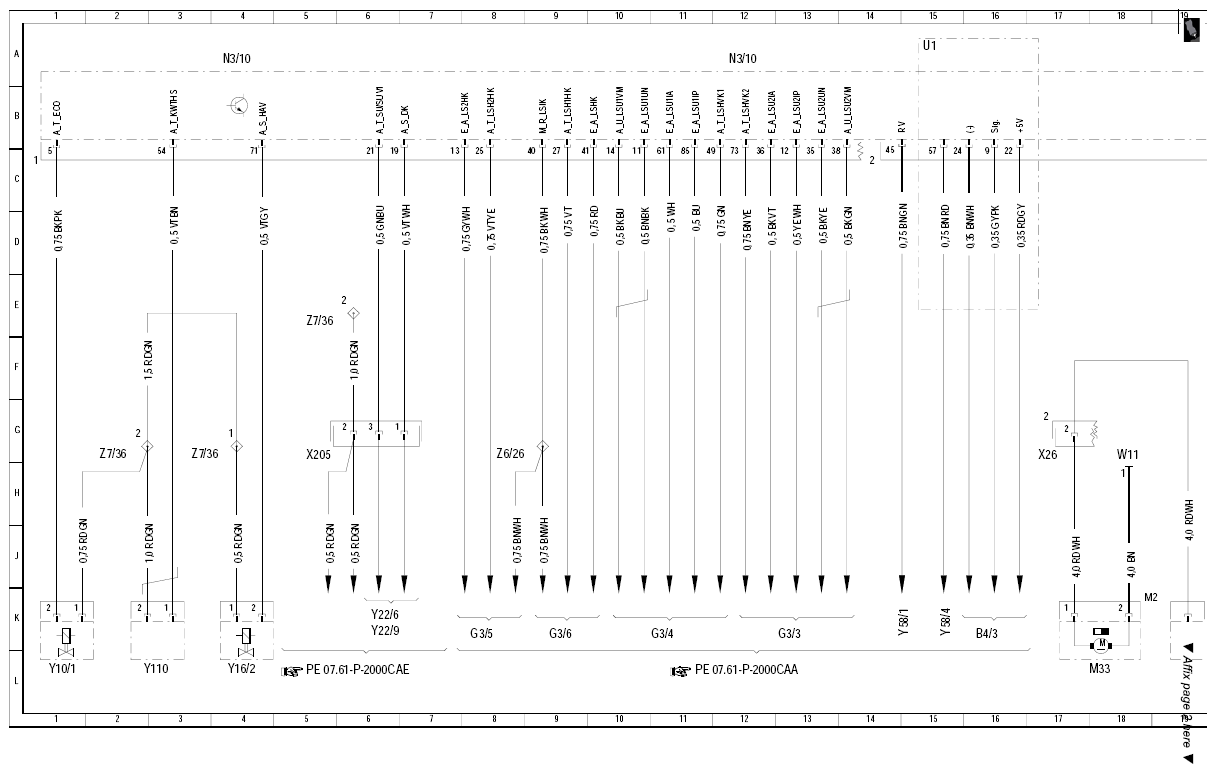

| N3/10 |
ME-SFI [ME] control module |
4A |
| N3/10 |
ME-SFI [ME] control module |
12A |
| N3/10 |
ME-SFI [ME] control module |
20A |
| N3/10 |
ME-SFI [ME] control module |
28A |
| N3/10 |
ME-SFI [ME] control module |
36A |
| U1 |
Valid for {{USA}} |
15A |
| U12 |
Valid for left-hand steering |
25C |
| U13 |
Valid for right-hand steering |
25D |
| W11 |
Ground (engine - connection point for ground wires) |
18H |
| W15/1 |
Ground (right footwell) |
26F |
| W18 |
Ground (left front seat crossmember) |
39H |
| W34/1 |
Ground (electronics - left footwell) |
26E |
| X205 |
Tumble flap/variable intake manifold switchover valves connector |
5H |
| X26 |
Interior and engine wiring harness connector |
17H |
| X30/21 |
Drive train CAN voltage distributor connector |
38L |
| X30/30 |
Chassis CAN/FFS [RBA] voltage distributor connector |
34L |
| Y10/1 |
Power steering pump pressure regulator valve |
1L |
| Y110 |
Three-disk thermostat valve |
2L |
| Y16/2 |
Heating system shutoff valve |
4L |
| Y22/6 |
Variable intake manifold switchover valve |
6K |
| Y22/9 |
Intake manifold tumble flap switchover valve |
6K |
| Y58/1 |
Purge control valve |
15K |
| Y58/4 |
Activated charcoal filter shutoff valve |
15K |
| Z6/26 |
Sensor supply connector sleeve |
8H |
| Z7/36 |
Circuit 87M2e connector sleeve |
2H |
| Z7/36 |
Circuit 87M2e connector sleeve |
3H |
| Z7/36 |
Circuit 87M2e connector sleeve |
5E |
| Z7/5 |
Circuit 87 connector sleeve |
21H |
| Z7/5 |
Circuit 87 connector sleeve |
23E |
