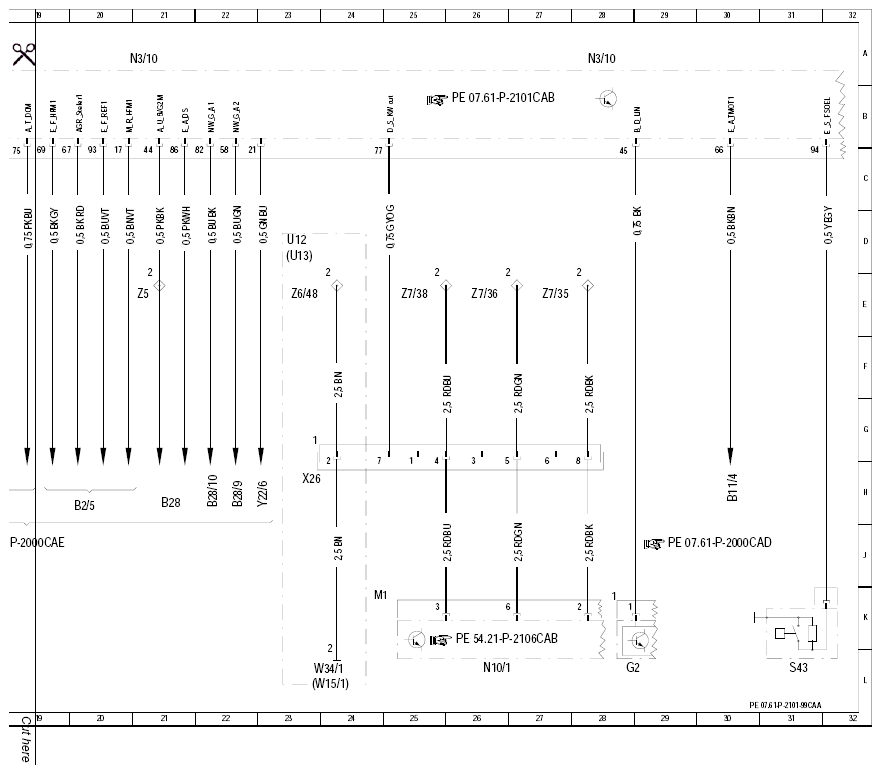

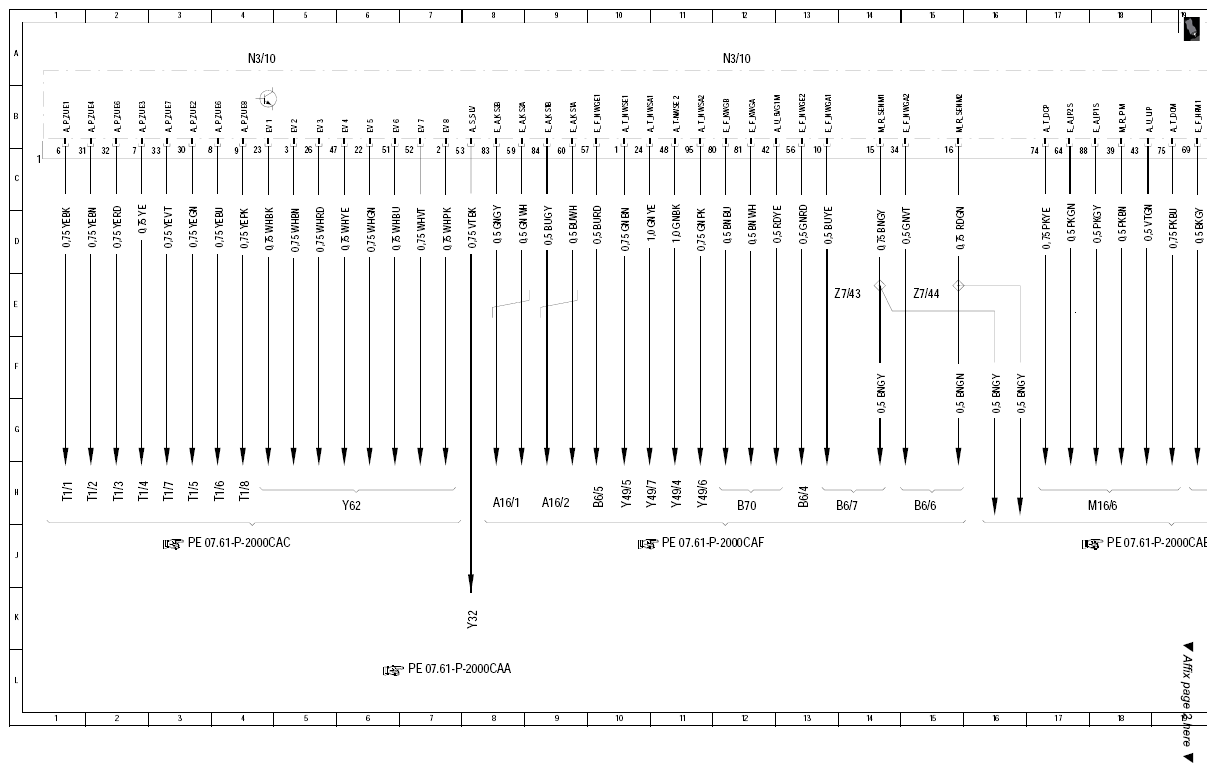

| Code: |
Designation: |
Position: |
| A16/1 |
Right knock sensor 1 |
8H |
| A16/2 |
Left knock sensor 2 |
9H |
| B11/4 |
Coolant temperature sensor |
30H |
| B2/5 |
Hot film MAF sensor |
20H |
| B28 |
Pressure sensor |
21H |
| B28/10 |
Right intake manifold tumble flap position sensor |
22H |
| B28/9 |
Left intake manifold tumble flap position sensor |
22H |
| B6/4 |
Left intake camshaft Hall sensor |
13H |
| B6/5 |
Right intake camshaft Hall sensor |
10H |
| B6/6 |
Left exhaust camshaft Hall sensor |
15H |
| B6/7 |
Right exhaust camshaft Hall sensor |
13H |
| B70 |
Crankshaft Hall sensor |
12H |
| G2 |
Generator |
28L |
| M16/6 |
Throttle valve actuator |
17H |
| N10/1 |
Front SAM control module with fuse and relay module |
26L |
| N3/10 |
ME-SFI [ME] control module |
4A |
| N3/10 |
ME-SFI [ME] control module |
12A |
| N3/10 |
ME-SFI [ME] control module |
20A |
| N3/10 |
ME-SFI [ME] control module |
28A |
| S43 |
Oil level switch |
31L |
| T1/1 |
Cylinder 1 ignition coil |
1H |
| T1/2 |
Cylinder 2 ignition coil |
2H |
| T1/3 |
Cylinder 3 ignition coil |
2H |
| T1/4 |
Cylinder 4 ignition coil |
2H |
| T1/5 |
Cylinder 5 ignition coil |
3H |
| T1/6 |
Cylinder 6 ignition coil |
4H |
| T1/7 |
Cylinder 7 ignition coil |
3H |
| T1/8 |
Cylinder 8 ignition coil |
4H |
| U12 |
Valid for left-hand steering |
23D |
| U13 |
Valid for right-hand steering |
23D |
| W15/1 |
Ground (right footwell) |
23L |
| W34/1 |
Ground (electronics - left footwell) |
23L |
| X26 |
Interior and engine wiring harness connector |
23H |
| Y32 |
Air pump switchover valve |
8K |
| Y49/4 |
Left camshaft intake solenoid |
11H |
| Y49/5 |
Right camshaft intake solenoid |
10H |
| Y49/6 |
Left camshaft exhaust solenoid |
11H |
| Y49/7 |
Right camshaft exhaust solenoid |
11H |
| Y62 |
Injectors (LH-SFI, HFM-SFI, PEC [LH, HFM, PMS]) |
6H |
| Z5 |
Connector sleeve (solder joint in harness) |
21E |
| Z6 |
Ground connector sleeve |
23E |
| Z7/35 |
Circuit 87M1e connector sleeve |
27E |
| Z7/36 |
Circuit 87M2e connector sleeve |
26E |
| Z7/38 |
Circuit 87 M1i connector sleeve |
25E |
| Z7/43 |
Sensor ground connector sleeve |
13E |
| Z7/44 |
Sensor ground connector sleeve |
15E |
