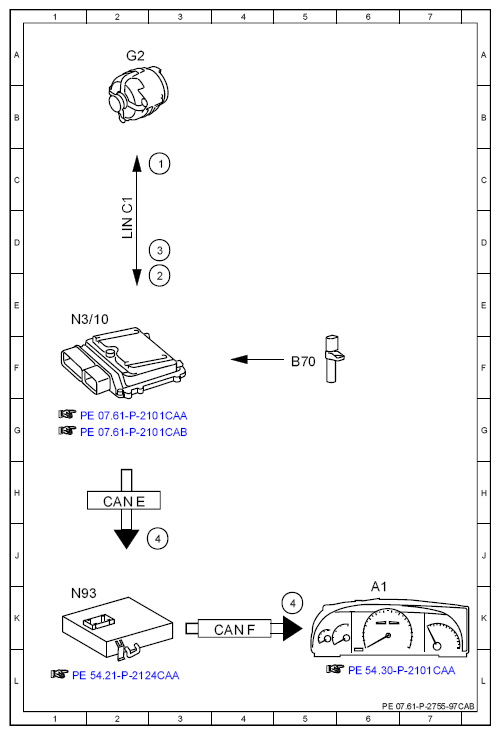

Electrical function schematic, alternator interface ME - PE07.61-P-2755-97CAB
| Code: | Designation: | Position: |
| 1 | Alternator, request | 3C |
| 2 | Alternator, status | 3E |
| 3 | Circuit 61, status | 3D |
| 4 | Instrument cluster, message | 3J |
| 4 | Instrument cluster, message | 5K |
| A1 | Instrument cluster | 6K |
| B70 | Crankshaft Hall sensor | 5F |
| CAN E | Chassis CAN | 2H |
| CAN F | Central CAN | 4K |
| G2 | Alternator | 2B |
| LIN C1 | Drive train LIN | 2D |
| N3/10 | ME-SFI [ME] control unit | 2F |
| N93 | Central gateway control unit | 2K |
